KS106-090A-E14-HF

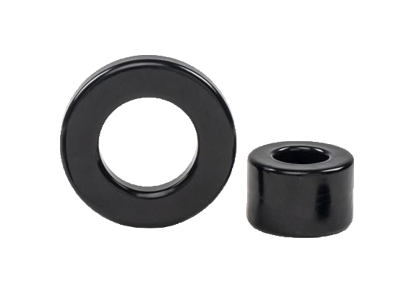

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters
Alloy core-Metal soft magnetic core
- 型号：KS106-090A-E14-HF
- Coating ID (mm): 27.70
- Coating OD (mm): 14.10
- Coating HT (mm): 15.00
- Without coating HT (mm): 26.90
- Without coating ID (mm): 14.70
- Without coating OD (mm): 14.00
- Ae(cm2): 0.818
- le(cm): 6.35
- V(cm3): 5.194
- W(cm2): 1.56
- Perm.（μ）: 90
- Al(nH/N2): 141
