KSF090-075A-E14

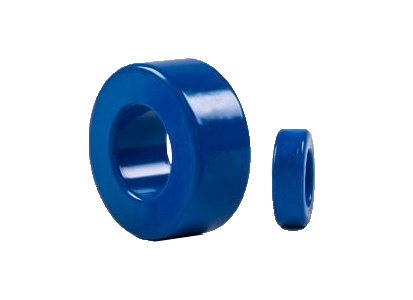

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters
Alloy core-Metal soft magnetic core
- 型号：KSF090-075A-E14
- Coating ID (mm): 23.620
- Coating OD (mm): 13.390
- Coating HT (mm): 15.000
- Without coating HT (mm): 22.90
- Without coating ID (mm): 15.00
- Without coating OD (mm): 14.00
- Ae(cm2): 0.608
- le(cm): 5.67
- V(cm3): 3.454
- W(cm2): 1.41
- Perm.（μ）: 75
- Al(nH/N2): 99
