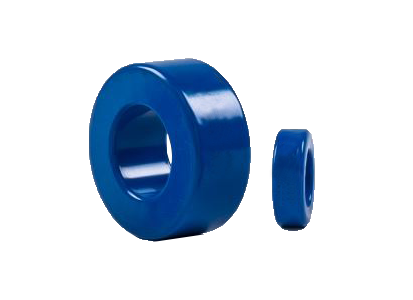

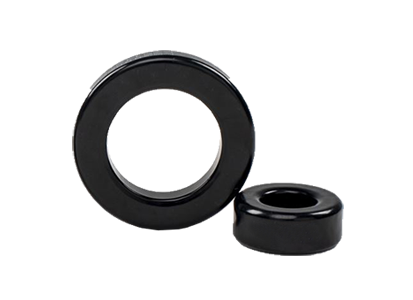

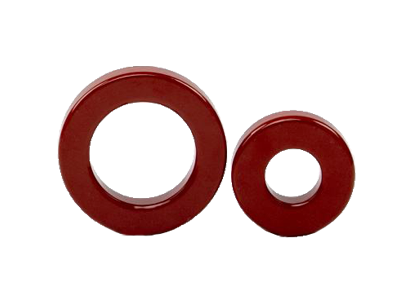

Metal soft magnetic core

Product Selection >>
Loading

Lateral swipe →
Series Coating ID (mm) Coating OD (mm) Coating HT (mm) Without coating HT (mm) Without coating ID (mm) Without coating OD (mm) Ae(cm2) le(cm) V(cm3) W(cm2) Perm.（μ） Al(nH/N2) Spec. Sample Application
KS050
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 More More -
-
KS050-026A
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 26 12
KS050-060A
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 60 27
KS050-075A
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 75 34
KS050-090A
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 90 40
KS050-125A
13.46 6.99 5.51 12.70 7.62 4.75 0.114 3.120 0.356 0.383 125 56
KS065
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 More More -
-
KS065-026A
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 26 15
KS065-060A
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 60 35
KS065-075A
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 75 43
KS065-090A
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 90 52
KS065-125A
17.40 9.53 7.11 16.50 10.20 6.35 0.192 4.110 0.789 0.713 125 72
KS068
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 More More -
-
KS068-026A
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 26 19
KS068-060A
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 60 43
KS068-075A
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 75 53
KS068-090A
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 90 64
KS068-125A
18.03 9.02 7.11 17.30 9.65 6.35 0.232 4.140 0.960 0.638 125 89
KS080
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 More More -
-
KS080-026A
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 26 14
KS080-060A
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 60 32
KS080-075A
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 75 41
KS080-090A
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 90 49
KS080-125A
21.10 12.07 7.11 20.30 12.70 6.35 0.226 5.090 1.150 1.140 125 68
KS090
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 More More -
-
KS090-026A
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 26 19
KS090-060A
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 60 43
KS090-075A
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 75 54
KS090-090A
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 90 65
KS090-125A
23.62 13.39 8.38 22.90 14.70 7.62 0.331 5.670 1.880 1.410 125 90
KS090-026A-E14
23.62 13.39 15.00 22.90 15.00 14.00 0.608 5.670 3.454 1.410 26 35
KS090-060A-E14
23.62 13.39 15.00 22.90 15.00 14.00 0.608 5.670 3.454 1.410 60 79
KS090-075A-E14
23.62 13.39 15.00 22.90 15.00 14.00 0.608 5.670 3.454 1.410 75 99
KS090-090A-E14
23.62 13.39 15.00 22.90 15.00 14.00 0.608 5.670 3.454 1.410 90 119
KS090-125A-E14
23.62 13.39 15.00 22.90 15.00 14.00 0.608 5.670 3.454 1.410 125 165
KS092
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 More More -
-
KS092-026A
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 26 22
KS092-060A
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 60 51
KS092-075A
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 75 63
KS092-090A
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 90 76
KS092-125A
24.3 13.77 9.7 23.60 15.00 8.89 0.388 5.88 2.28 1.49 125 105
KS092-026A-E14
24.30 13.77 15.00 23.60 15.00 14.00 0.611 5.880 3.591 1.490 26 35
KS092-060A-E14
24.30 13.77 15.00 23.60 15.00 14.00 0.611 5.880 3.591 1.490 60 80
KS092-075A-E14
24.30 13.77 15.00 23.60 15.00 14.00 0.611 5.880 3.591 1.490 75 99
KS092-090A-E14
24.30 13.77 15.00 23.60 15.00 14.00 0.611 5.880 3.591 1.490 90 120
KS092-125A-E14
24.30 13.77 15.00 23.60 15.00 14.00 0.611 5.880 3.591 1.490 125 165
KS092-026A-E18
24.30 13.77 19.00 23.60 14.40 18.00 0.786 5.880 4.616 1.490 26 45
KS092-060A-E18
24.30 13.77 19.00 23.60 14.40 18.00 0.786 5.880 4.616 1.490 60 103
KS092-075A-E18
24.30 13.77 19.00 23.60 14.40 18.00 0.786 5.880 4.616 1.490 75 128
KS092-090A-E18
24.30 13.77 19.00 23.60 14.40 18.00 0.786 5.880 4.616 1.490 90 154
KS092-125A-E18
24.30 13.77 19.00 23.60 14.40 18.00 0.786 5.880 4.616 1.490 125 213
KS107
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 More More -
-
KS107-026A
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 26 22
KS107-060A
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 60 59
KS107-075A
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 75 74
KS107-090A
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 90 89
KS107-125A
27.70 14.10 9.45 26.90 14.70 8.64 0.497 6.352 3.155 1.560 125 123
KS106
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 More More -
-
KS106-026A
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 26 32
KS106-060A
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 60 75
KS106-075A
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 75 94
KS106-090A
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 90 113
KS106-125A
27.70 14.10 11.99 26.90 14.70 11.20 0.654 6.350 4.150 1.560 125 157
KS106-026A-E14
27.70 14.10 15.00 26.90 14.70 14.00 0.818 6.350 5.194 1.560 26 40
KS106-060A-E14
27.70 14.10 15.00 26.90 14.70 14.00 0.818 6.350 5.194 1.560 60 94
KS106-075A-E14
27.70 14.10 15.00 26.90 14.70 14.00 0.818 6.350 5.194 1.560 75 118
KS106-090A-E14
27.70 14.10 15.00 26.90 14.70 14.00 0.818 6.350 5.194 1.560 90 141
KS106-125A-E14
27.70 14.10 15.00 26.90 14.70 14.00 0.818 6.350 5.194 1.560 125 196
KS106-026A-E18
27.70 14.10 19.00 26.90 14.70 18.00 1.051 6.350 6.670 1.560 26 51
KS106-060A-E18
27.70 14.10 19.00 26.90 14.70 18.00 1.051 6.350 6.670 1.560 60 120
KS106-075A-E18
27.70 14.10 19.00 26.90 14.70 18.00 1.051 6.350 6.670 1.560 75 151
KS106-090A-E18
27.70 14.10 19.00 26.90 14.70 18.00 1.051 6.350 6.670 1.560 90 181
KS106-125A-E18
27.70 14.10 19.00 26.90 14.70 18.00 1.051 6.350 6.670 1.560 125 252
KS131
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 More More -
-
KS131-026A
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 26 22
KS131-060A
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 60 51
KS131-075A
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 75 64
KS131-090A
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 90 76.5
KS131-125A
33.83 19.30 9.70 33.00 19.90 8.76 0.551 8.147 4.490 2.930 125 109
KS135
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 More More -
-
KS135-026A
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 26 16
KS135-060A
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 60 38
KS135-075A
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 75 47
KS135-090A
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 90 57
KS135-125A
35.10 22.56 9.83 34.30 23.40 8.89 0.454 8.950 4.060 4.010 125 79
KS130
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 More More -
-
KS130-026A
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 26 28
KS130-060A
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 60 61
KS130-075A
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 75 76
KS130-090A
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 90 91
KS130-125A
33.83 19.30 11.61 33.00 19.90 10.70 0.672 8.150 5.480 2.930 125 127
KS130-026A-E14
33.83 19.30 15.00 33.00 19.90 14.00 0.879 8.150 7.170 2.930 26 37
KS130-060A-E14
33.83 19.30 15.00 33.00 19.90 14.00 0.879 8.150 7.170 2.930 60 80
KS130-075A-E14
33.83 19.30 15.00 33.00 19.90 14.00 0.879 8.150 7.170 2.930 75 99
KS130-090A-E14
33.83 19.30 15.00 33.00 19.90 14.00 0.879 8.150 7.170 2.930 90 119
KS130-125A-E14
33.83 19.30 15.00 33.00 19.90 14.00 0.879 8.150 7.170 2.930 125 166
KS130-026A-E18
33.83 19.30 19.00 33.00 19.90 18.00 1.130 8.150 9.219 2.930 26 47
KS130-060A-E18
33.83 19.30 19.00 33.00 19.90 18.00 1.130 8.150 9.219 2.930 60 103
KS130-075A-E18
33.83 19.30 19.00 33.00 19.90 18.00 1.130 8.150 9.219 2.930 75 128
KS130-090A-E18
33.83 19.30 19.00 33.00 19.90 18.00 1.130 8.150 9.219 2.930 90 153
KS130-125A-E18
33.83 19.30 19.00 33.00 19.90 18.00 1.130 8.150 9.219 2.930 125 214
KS132
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 More More -
-
KS132-026A
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 26 28
KS132-060A
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 60 65
KS132-075A
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 75 81
KS132-090A
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 90 97
KS132-125A
33.83 19.30 11.99 33.00 19.90 11.18 0.698 8.147 5.687 2.930 125 135
KS141
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 More More -
-
KS141-026A
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 26 24
KS141-060A
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 60 56
KS141-075A
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 75 70
KS141-090A
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 90 84
KS141-125A
36.63 21.54 11.28 35.80 22.40 10.50 0.678 8.980 6.088 3.640 125 117
KS157
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 More More -
-
KS157-026A
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 26 35
KS157-060A
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 60 81
KS157-075A
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 75 101
KS157-090A
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 90 121
KS157-125A
40.72 23.30 15.37 39.90 24.10 14.50 1.072 9.840 10.500 4.270 125 168
KS168
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 More More -
-
KS168-026A
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 26 47
KS168-060A
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 60 108
KS168-075A
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 75 135
KS168-090A
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 90 161
KS168-125A
44.00 23.30 17.16 42.90 24.20 16.26 1.475 10.216 15.741 3.644 125 224
KS158
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 More More -
-
KS158-026A
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 26 53
KS158-060A
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 60 122
KS158-075A
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 75 152
KS158-090A
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 90 183
KS158-125A
40.94 21.27 17.89 40.13 22.08 17.00 1.537 9.510 15.043 3.551 125 254
KS184
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 More More -
-
KS184-026A
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 26 59 -
KS184-060A
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 60 135 -
KS184-075A
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 75 169 -
KS184-090A
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 90 202 -
KS184-125A
47.63 23.32 18.92 46.70 24.10 18.00 1.990 10.740 21.300 4.270 125 281 -
KS185
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 More More -
-
KS185-026A
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 26 37
KS185-060A
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 60 86
KS185-075A
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 75 107
KS185-090A
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 90 128
KS185-125A
47.63 27.89 16.13 46.70 28.70 15.20 1.340 11.630 15.530 6.110 125 178
KS200
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 More More -
-
KS200-026A
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 26 32
KS200-060A
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 60 73
KS200-075A
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 75 91
KS200-090A
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 90 109
KS200-125A
51.69 30.94 14.35 50.80 31.80 13.50 1.251 12.730 15.930 7.500 125 152
KS226
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 More More -
-
KS226-026A
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 26 60
KS226-060A
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 60 138
KS226-075A
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 75 175
KS226-090A
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 90 207
KS226-125A
58.00 25.60 16.10 57.20 26.40 15.20 2.290 12.500 28.600 5.140 125 287
KS225
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 More More -
-
KS225-026A
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 26 33
KS225-060A
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 60 75
KS225-075A
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 75 94
KS225-090A
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 90 112
KS225-125A
58.00 34.70 14.86 57.20 35.60 14.00 1.444 14.300 20.650 9.480 125 156
KS250
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 More More -
-
KS250-026A-E18
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 26 60
KS250-060A-E18
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 60 138
KS250-075A-E18
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 75 173
KS250-090A-E18
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 90 207
KS250-125A-E18
63.10 31.37 19.27 62.00 32.60 18.00 2.646 14.370 38.023 7.730 125 288
KS250-026A-E20
63.10 31.37 21.27 62.00 32.60 20.00 2.940 14.370 42.248 7.730 26 66
KS250-060A-E20
63.10 31.37 21.27 62.00 32.60 20.00 2.940 14.370 42.248 7.730 60 154
KS250-075A-E20
63.10 31.37 21.27 62.00 32.60 20.00 2.940 14.370 42.248 7.730 75 192
KS250-090A-E20
63.10 31.37 21.27 62.00 32.60 20.00 2.940 14.370 42.248 7.730 90 230
KS250-125A-E20
63.10 31.37 21.27 62.00 32.60 20.00 2.940 14.370 42.248 7.730 125 320
KS250-026A
63.10 31.37 26.27 62.00 32.60 25.00 3.675 14.370 52.810 7.730 26 83
KS250-060A
63.10 31.37 26.27 62.00 32.60 25.00 3.675 14.370 52.810 7.730 60 192
KS250-075A
63.10 31.37 26.27 62.00 32.60 25.00 3.675 14.370 52.810 7.730 75 240
KS250-090A
63.10 31.37 26.27 62.00 32.60 25.00 3.675 14.370 52.810 7.730 90 288
KS250-125A
63.10 31.37 26.27 62.00 32.60 25.00 3.675 14.370 52.810 7.730 125 400
KS268
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 More More -
-
KS268-026A
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 26 62
KS268-060A
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 60 143
KS268-075A
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 75 179
KS268-090A
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 90 214
KS268-125A
69.40 34.70 21.40 68.00 36.00 20.00 3.104 16.330 50.690 9.620 125 300
KS300
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 More More -
-
KS300-026A
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 26 30
KS300-060A
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 60 68
KS300-075A
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 75 85
KS300-090A
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 90 102
KS300-125A
78.90 48.20 13.84 77.80 49.20 12.70 1.770 20.000 34.700 17.990 125 142
KS301
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 More More -
-
KS301-026A
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 26 37
KS301-060A
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 60 85
KS301-075A
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 75 107
KS301-090A
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 90 128
KS301-125A
78.90 48.20 17.02 77.80 49.20 15.90 2.270 19.950 45.300 17.990 125 178
KS290
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 More More -
-
KS290-026A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 26 89
KS290-040A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 40 137
KS290-060A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 60 206
KS290-075A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 75 257
KS290-090A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 90 309
KS290-125A
75.20 44.07 36.27 74.10 45.30 35.00 5.040 18.380 92.640 15.250 125 429
KS401
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 More More -
-
KS401-026A
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 26 40
KS401-060A
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 60 92
KS401-075A
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 75 115
KS401-090A
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 90 139
KS401-125A
103.12 55.75 14.86 101.60 57.15 13.59 2.972 24.271 72.122 24.413 125 192
KS400
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 More More -
-
KS400-026A
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 26 48
KS400-060A
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 60 112
KS400-075A
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 75 137
KS400-090A
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 90 164
KS400-125A
103.12 55.75 17.78 101.60 57.15 16.51 3.523 24.271 85.495 24.413 125 232
KS520
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 More More -
-
KS520-026A
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 26 54
KS520-060A
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 60 124
KS520-075A
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 75 155
KS520-090A
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 90 187
KS520-125A
133.96 77.04 21.72 132.54 78.59 20.32 5.347 32.428 173.400 46.612 125 259
KS521
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 More More -
-
KS521-026A
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 26 68
KS521-060A
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 60 156
KS521-075A
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 75 195
KS521-090A
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 90 234
KS521-125A
133.96 77.04 26.80 132.54 78.59 25.40 6.710 32.429 217.580 46.612 125 325
KSF050
13.460 6.990 5.510 12.70 7.62 4.75 0.114 3.12 0.356 0.383 More More -
-
KSF050-060A
13.460 6.990 5.510 12.70 7.62 4.75 0.114 3.12 0.356 0.383 60 27
KSF050-075A
13.460 6.990 5.510 12.70 7.62 4.75 0.114 3.12 0.356 0.383 75 34
KSF050-090A
13.460 6.990 5.510 12.70 7.62 4.75 0.114 3.12 0.356 0.383 90 40
KSF065
17.400 9.530 7.110 16.50 10.20 6.35 0.192 4.11 0.789 0.713 More More -
-
KSF065-026A
17.400 9.530 7.110 16.50 10.20 6.35 0.192 4.11 0.789 0.713 26 15
KSF065-060A
17.400 9.530 7.110 16.50 10.20 6.35 0.192 4.11 0.789 0.713 60 35
KSF065-075A
17.400 9.530 7.110 16.50 10.20 6.35 0.192 4.11 0.789 0.713 75 43
KSF065-090A
17.400 9.530 7.110 16.50 10.20 6.35 0.192 4.11 0.789 0.713 90 52
KSF068
18.030 9.020 7.110 17.30 9.65 6.35 0.232 4.14 0.96 0.638 More More -
-
KSF068-026A
18.030 9.020 7.110 17.30 9.65 6.35 0.232 4.14 0.96 0.638 26 19
KSF068-060A
18.030 9.020 7.110 17.30 9.65 6.35 0.232 4.14 0.96 0.638 60 43
KSF068-075A
18.030 9.020 7.110 17.30 9.65 6.35 0.232 4.14 0.96 0.638 75 53
KSF068-090A
18.030 9.020 7.110 17.30 9.65 6.35 0.232 4.14 0.96 0.638 90 64
KSF080
21.100 12.070 7.110 20.30 12.70 6.35 0.226 5.09 1.15 1.14 More More -
-
KSF080-026A
21.100 12.070 7.110 20.30 12.70 6.35 0.226 5.09 1.15 1.14 26 14
KSF080-060A
21.100 12.070 7.110 20.30 12.70 6.35 0.226 5.09 1.15 1.14 60 32
KSF080-075A
21.100 12.070 7.110 20.30 12.70 6.35 0.226 5.09 1.15 1.14 75 41
KSF080-090A
21.100 12.070 7.110 20.30 12.70 6.35 0.226 5.09 1.15 1.14 90 49
KSF090
23.620 13.390 8.380 22.90 14.70 7.62 0.331 5.67 1.88 1.41 More More -
-
KSF090-026A
23.620 13.390 8.380 22.90 14.70 7.62 0.331 5.67 1.88 1.41 26 19
KSF090-060A
23.620 13.390 8.380 22.90 14.70 7.62 0.331 5.67 1.88 1.41 60 43
KSF090-075A
23.620 13.390 8.380 22.90 14.70 7.62 0.331 5.67 1.88 1.41 75 54
KSF090-090A
23.620 13.390 8.380 22.90 14.70 7.62 0.331 5.67 1.88 1.41 90 65
KSF090-060A-E14
23.620 13.390 15.000 22.90 15.00 14.00 0.608 5.67 3.454 1.41 60 79
KSF090-075A-E14
23.620 13.390 15.000 22.90 15.00 14.00 0.608 5.67 3.454 1.41 75 99
KSF090-090A-E14
23.620 13.390 15.000 22.90 15.00 14.00 0.608 5.67 3.454 1.41 90 119
KSF092
24.300 13.770 9.700 23.60 14.40 8.89 0.388 5.88 2.28 1.49 More More -
-
KSF092-026A
24.300 13.770 9.700 23.60 14.40 8.89 0.388 5.88 2.28 1.49 26 22
KSF092-060A
24.300 13.770 9.700 23.60 14.40 8.89 0.388 5.88 2.28 1.49 60 51
KSF092-075A
24.300 13.770 9.700 23.60 14.40 8.89 0.388 5.88 2.28 1.49 75 63
KSF092-090A
24.300 13.770 9.700 23.60 14.40 8.89 0.388 5.88 2.28 1.49 90 76
KSF092-060A-E14
24.300 13.770 15.000 23.60 15.00 14.00 0.611 5.88 3.591 1.49 60 80
KSF092-075A-E14
24.300 13.770 15.000 23.60 15.00 14.00 0.611 5.88 3.591 1.49 75 99
KSF092-090A-E14
24.300 13.770 15.000 23.60 15.00 14.00 0.611 5.88 3.591 1.49 90 120
KSF092-026A-E18
24.300 13.770 19.000 23.60 14.40 18.00 0.786 5.88 4.616 1.49 26 45
KSF092-060A-E18
24.300 13.770 19.000 23.60 14.40 18.00 0.786 5.88 4.616 1.49 60 103
KSF092-075A-E18
24.300 13.770 19.000 23.60 14.40 18.00 0.786 5.88 4.616 1.49 75 128
KSF092-090A-E18
24.300 13.770 19.000 23.60 14.40 18.00 0.786 5.88 4.616 1.49 90 154
KSF107
27.700 14.100 9.450 26.90 14.70 8.64 0.497 6.352 3.155 1.56 More More -
-
KSF107-026A
27.700 14.100 9.450 26.90 14.70 8.64 0.497 6.352 3.155 1.56 26 22
KSF107-060A
27.700 14.100 9.450 26.90 14.70 8.64 0.497 6.352 3.155 1.56 60 59
KSF107-075A
27.700 14.100 9.450 26.90 14.70 8.64 0.497 6.352 3.155 1.56 75 74
KSF107-090A
27.700 14.100 9.450 26.90 14.70 8.64 0.497 6.352 3.155 1.56 90 89
KSF106
27.700 14.100 11.990 26.90 14.70 11.20 0.654 6.35 4.15 1.56 More More -
-
KSF106-026A
27.700 14.100 11.990 26.90 14.70 11.20 0.654 6.35 4.15 1.56 26 32
KSF106-060A
27.700 14.100 11.990 26.90 14.70 11.20 0.654 6.35 4.15 1.56 60 75
KSF106-075A
27.700 14.100 11.990 26.90 14.70 11.20 0.654 6.35 4.15 1.56 75 94
KSF106-090A
27.700 14.100 11.990 26.90 14.70 11.20 0.654 6.35 4.15 1.56 90 113
KSF106-060A-E14
27.700 14.100 15.000 26.90 14.70 14.00 0.818 6.35 5.194 1.56 60 94
KSF106-075A-E14
27.700 14.100 15.000 26.90 14.70 14.00 0.818 6.35 5.194 1.56 75 118
KSF106-090A-E14
27.700 14.100 15.000 26.90 14.70 14.00 0.818 6.35 5.194 1.56 90 141
KSF106-060A-E18
27.700 14.100 19.000 26.90 14.70 18.00 1.051 6.35 6.67 1.56 60 120
KSF106-075A-E18
27.700 14.100 19.000 26.90 14.70 18.00 1.051 6.35 6.67 1.56 75 151
KSF106-090A-E18
27.700 14.100 19.000 26.90 14.70 18.00 1.051 6.35 6.67 1.56 90 181
KSF131
33.830 19.300 9.700 33.00 19.90 8.76 0.551 8.147 4.49 2.93 More More -
-
KSF131-026A
33.830 19.300 9.700 33.00 19.90 8.76 0.551 8.147 4.49 2.93 26 22
KSF131-060A
33.830 19.300 9.700 33.00 19.90 8.76 0.551 8.147 4.49 2.93 60 51
KSF131-075A
33.830 19.300 9.700 33.00 19.90 8.76 0.551 8.147 4.49 2.93 75 64
KSF131-090A
33.830 19.300 9.700 33.00 19.90 8.76 0.551 8.147 4.49 2.93 90 76.5
KSF135
35.100 22.560 9.830 34.30 23.40 8.89 0.454 8.95 4.06 4.01 More More -
-
KSF135-026A
35.100 22.560 9.830 34.30 23.40 8.89 0.454 8.95 4.06 4.01 26 16
KSF135-060A
35.100 22.560 9.830 34.30 23.40 8.89 0.454 8.95 4.06 4.01 60 38
KSF135-075A
35.100 22.560 9.830 34.30 23.40 8.89 0.454 8.95 4.06 4.01 75 47
KSF135-090A
35.100 22.560 9.830 34.30 23.40 8.89 0.454 8.95 4.06 4.01 90 57
KSF132
33.830 19.300 11.990 33.00 19.90 11.18 0.698 8.147 5.687 2.93 More More -
-
KSF132-026A
33.830 19.300 11.990 33.00 19.90 11.18 0.698 8.147 5.687 2.93 26 28
KSF132-060A
33.830 19.300 11.990 33.00 19.90 11.18 0.698 8.147 5.687 2.93 60 65
KSF132-075A
33.830 19.300 11.990 33.00 19.90 11.18 0.698 8.147 5.687 2.93 75 81
KSF132-090A
33.830 19.300 11.990 33.00 19.90 11.18 0.698 8.147 5.687 2.93 90 97
KSF141
36.630 21.540 11.280 35.80 22.40 10.50 0.678 8.98 6.088 3.64 More More -
-
KSF141-026A
36.630 21.540 11.280 35.80 22.40 10.50 0.678 8.98 6.088 3.64 26 24
KSF141-060A
36.630 21.540 11.280 35.80 22.40 10.50 0.678 8.98 6.088 3.64 60 56
KSF141-075A
36.630 21.540 11.280 35.80 22.40 10.50 0.678 8.98 6.088 3.64 75 70
KSF141-090A
36.630 21.540 11.280 35.80 22.40 10.50 0.678 8.98 6.088 3.64 90 84
KSF130
33.830 19.300 15.000 33.00 19.90 14.00 0.879 8.15 7.17 2.93 More More -
-
KSF130-026A
33.830 19.300 11.610 33.00 19.90 10.70 0.672 8.15 5.48 2.93 26 28
KSF130-060A-E14
33.830 19.300 15.000 33.00 19.90 14.00 0.879 8.15 7.17 2.93 60 80
KSF130-060A
33.830 19.300 11.610 33.00 19.90 10.70 0.672 8.15 5.48 2.93 60 61
KSF130-075A-E14
33.830 19.300 15.000 33.00 19.90 14.00 0.879 8.15 7.17 2.93 75 99
KSF130-075A
33.830 19.300 11.610 33.00 19.90 10.70 0.672 8.15 5.48 2.93 75 76
KSF130-090A-E14
33.830 19.300 15.000 33.00 19.90 14.00 0.879 8.15 7.17 2.93 90 119
KSF130-090A
33.830 19.300 11.610 33.00 19.90 10.70 0.672 8.15 5.48 2.93 90 91
KSF130-060A-E18
33.830 19.300 19.000 33.00 19.90 18.00 1.13 8.15 9.219 2.93 60 103
KSF130-075A-E18
33.830 19.300 19.000 33.00 19.90 18.00 1.13 8.15 9.219 2.93 75 128
KSF130-090A-E18
33.830 19.300 19.000 33.00 19.90 18.00 1.13 8.15 9.219 2.93 90 153
KSF157
40.720 23.300 15.370 39.90 24.10 14.50 1.072 9.84 10.5 4.27 More More -
-
KSF157-026A
40.720 23.300 15.370 39.90 24.10 14.50 1.072 9.84 10.5 4.27 26 35
KSF157-060A
40.720 23.300 15.370 39.90 24.10 14.50 1.072 9.84 10.5 4.27 60 81
KSF157-075A
40.720 23.300 15.370 39.90 24.10 14.50 1.072 9.84 10.5 4.27 75 101
KSF157-090A
40.720 23.300 15.370 39.90 24.10 14.50 1.072 9.84 10.5 4.27 90 121
KSF168
44.000 23.300 17.160 42.90 24.20 16.26 1.475 10.216 15.741 3.644 More More -
-
KSF168-026A
44.000 23.300 17.160 42.90 24.20 16.26 1.475 10.216 15.741 3.644 26 47
KSF168-060A
44.000 23.300 17.160 42.90 24.20 16.26 1.475 10.216 15.741 3.644 60 108
KSF168-075A
44.000 23.300 17.160 42.90 24.20 16.26 1.475 10.216 15.741 3.644 75 135
KSF168-090A
44.000 23.300 17.160 42.90 24.20 16.26 1.475 10.216 15.741 3.644 90 161
KSF158
40.940 21.270 17.890 40.13 22.08 17.00 1.537 9.51 15.043 3.551 More More -
-
KSF158-026A
40.940 21.270 17.890 40.13 22.08 17.00 1.537 9.51 15.043 3.551 26 53
KSF158-060A
40.940 21.270 17.890 40.13 22.08 17.00 1.537 9.51 15.043 3.551 60 122
KSF158-075A
40.940 21.270 17.890 40.13 22.08 17.00 1.537 9.51 15.043 3.551 75 152
KSF158-090A
40.940 21.270 17.890 40.13 22.08 17.00 1.537 9.51 15.043 3.551 90 183
KSF184
47.630 23.320 18.920 46.70 24.10 18.00 1.99 10.74 21.3 4.27 More More -
-
KSF184-026A
47.630 23.320 18.920 46.70 24.10 18.00 1.99 10.74 21.3 4.27 26 59
KSF184-060A
47.630 23.320 18.920 46.70 24.10 18.00 1.99 10.74 21.3 4.27 60 135
KSF184-075A
47.630 23.320 18.920 46.70 24.10 18.00 1.99 10.74 21.3 4.27 75 169
KSF184-090A
47.630 23.320 18.920 46.70 24.10 18.00 1.99 10.74 21.3 4.27 90 202
KSF185
47.630 27.890 16.130 46.70 28.70 15.20 1.34 11.63 15.53 6.11 More More -
-
KSF185-026A
47.630 27.890 16.130 46.70 28.70 15.20 1.34 11.63 15.53 6.11 26 37
KSF185-060A
47.630 27.890 16.130 46.70 28.70 15.20 1.34 11.63 15.53 6.11 60 86
KSF185-075A
47.630 27.890 16.130 46.70 28.70 15.20 1.34 11.63 15.53 6.11 75 107
KSF185-090A
47.630 27.890 16.130 46.70 28.70 15.20 1.34 11.63 15.53 6.11 90 128
KSF200
51.690 30.940 14.350 50.80 31.80 13.50 1.251 12.73 15.93 7.5 More More -
-
KSF200-026A
51.690 30.940 14.350 50.80 31.80 13.50 1.251 12.73 15.93 7.5 26 32
KSF200-060A
51.690 30.940 14.350 50.80 31.80 13.50 1.251 12.73 15.93 7.5 60 73
KSF200-075A
51.690 30.940 14.350 50.80 31.80 13.50 1.251 12.73 15.93 7.5 75 91
KSF200-090A
51.690 30.940 14.350 50.80 31.80 13.50 1.251 12.73 15.93 7.5 90 109
KSF226
58.000 25.600 16.100 57.20 26.40 15.20 2.29 12.5 28.6 5.14 More More -
-
KSF226-026A
58.000 25.600 16.100 57.20 26.40 15.20 2.29 12.5 28.6 5.14 26 60
KSF226-060A
58.000 25.600 16.100 57.20 26.40 15.20 2.29 12.5 28.6 5.14 60 138
KSF226-075A
58.000 25.600 16.100 57.20 26.40 15.20 2.29 12.5 28.6 5.14 75 175
KSF226-090A
58.000 25.600 16.100 57.20 26.40 15.20 2.29 12.5 28.6 5.14 90 207
KSF225
58.000 34.700 14.860 57.20 35.60 14.00 1.444 14.3 20.65 9.48 More More -
-
KSF225-026A
58.000 34.700 14.860 57.20 35.60 14.00 1.444 14.3 20.65 9.48 26 33
KSF225-060A
58.000 34.700 14.860 57.20 35.60 14.00 1.444 14.3 20.65 9.48 60 75
KSF225-075A
58.000 34.700 14.860 57.20 35.60 14.00 1.444 14.3 20.65 9.48 75 94
KSF225-090A
58.000 34.700 14.860 57.20 35.60 14.00 1.444 14.3 20.65 9.48 90 112
KSF250
63.100 31.370 19.270 62.00 32.60 18.00 2.646 14.37 38.023 7.73 More More -
-
KSF250-060A-E18
63.100 31.370 19.270 62.00 32.60 18.00 2.646 14.37 38.023 7.73 60 138
KSF250-075A-E18
63.100 31.370 19.270 62.00 32.60 18.00 2.646 14.37 38.023 7.73 75 173
KSF250-090A-E18
63.100 31.370 19.270 62.00 32.60 18.00 2.646 14.37 38.023 7.73 90 207
KSF250-026A-E20
63.100 31.370 21.270 62.00 32.60 20.00 2.94 14.37 42.248 7.73 26 66
KSF250-060A-E20
63.100 31.370 21.270 62.00 32.60 20.00 2.94 14.37 42.248 7.73 60 154
KSF250-075A-E20
63.100 31.370 21.270 62.00 32.60 20.00 2.94 14.37 42.248 7.73 75 192
KSF250-090A-E20
63.100 31.370 21.270 62.00 32.60 20.00 2.94 14.37 42.248 7.73 90 230
KSF250-026A
63.100 31.370 26.270 62.00 32.60 25.00 3.675 14.37 52.81 7.73 26 83
KSF250-060A
63.100 31.370 26.270 62.00 32.60 25.00 3.675 14.37 52.81 7.73 60 192
KSF250-075A
63.100 31.370 26.270 62.00 32.60 25.00 3.675 14.37 52.81 7.73 75 240
KSF250-090A
63.100 31.370 26.270 62.00 32.60 25.00 3.675 14.37 52.81 7.73 90 288
KSF268
69.400 34.700 21.400 68.00 36.00 20.00 3.104 16.33 50.69 9.62 More More -
-
KSF268-026A
69.400 34.700 21.400 68.00 36.00 20.00 3.104 16.33 50.69 9.62 26 62
KSF268-060A
69.400 34.700 21.400 68.00 36.00 20.00 3.104 16.33 50.69 9.62 60 143
KSF268-075A
69.400 34.700 21.400 68.00 36.00 20.00 3.104 16.33 50.69 9.62 75 179
KSF268-090A
69.400 34.700 21.400 68.00 36.00 20.00 3.104 16.33 50.69 9.62 90 214
KSF300
78.900 48.200 13.840 77.80 49.20 12.70 1.77 20 34.7 17.99 More More -
-
KSF300-026A
78.900 48.200 13.840 77.80 49.20 12.70 1.77 20 34.7 17.99 26 30
KSF300-060A
78.900 48.200 13.840 77.80 49.20 12.70 1.77 20 34.7 17.99 60 68
KSF300-075A
78.900 48.200 13.840 77.80 49.20 12.70 1.77 20 34.7 17.99 75 85
KSF300-090A
78.900 48.200 13.840 77.80 49.20 12.70 1.77 20 34.7 17.99 90 102
KSF301
78.900 48.200 17.020 77.80 49.20 15.90 2.27 19.95 45.3 17.99 More More -
-
KSF301-026A
78.900 48.200 17.020 77.80 49.20 15.90 2.27 19.95 45.3 17.99 26 37
KSF301-060A
78.900 48.200 17.020 77.80 49.20 15.90 2.27 19.95 45.3 17.99 60 85
KSF301-075A
78.900 48.200 17.020 77.80 49.20 15.90 2.27 19.95 45.3 17.99 75 107
KSF301-090A
78.900 48.200 17.020 77.80 49.20 15.90 2.27 19.95 45.3 17.99 90 128
KSF290
75.200 44.070 36.270 74.10 45.30 35.00 5.04 18.38 92.64 15.25 More More -
-
KSF290-026A
75.200 44.070 36.270 74.10 45.30 35.00 5.04 18.38 92.64 15.25 26 89
KSF290-060A
75.200 44.070 36.270 74.10 45.30 35.00 5.04 18.38 92.64 15.25 60 206
KSF290-075A
75.200 44.070 36.270 74.10 45.30 35.00 5.04 18.38 92.64 15.25 75 257
KSF290-090A
75.200 44.070 36.270 74.10 45.30 35.00 5.04 18.38 92.64 15.25 90 309
KSF401
103.120 55.750 14.860 101.60 57.15 13.59 2.9716 24.271 72.122 24.413 More More -
-
KSF401-026A
103.120 55.750 14.860 101.60 57.15 13.59 2.9716 24.271 72.122 24.413 26 40
KSF401-060A
103.120 55.750 14.860 101.60 57.15 13.59 2.9716 24.271 72.122 24.413 60 92
KSF401-075A
103.120 55.750 14.860 101.60 57.15 13.59 2.9716 24.271 72.122 24.413 75 115
KSF401-090A
103.120 55.750 14.860 101.60 57.15 13.59 2.9716 24.271 72.122 24.413 90 139
KSF400
103.120 55.750 17.780 101.60 57.15 16.51 3.5226 24.271 85.495 24.413 More More -
-
KSF400-026A
103.120 55.750 17.780 101.60 57.15 16.51 3.5226 24.271 85.495 24.413 26 48
KSF400-060A
103.120 55.750 17.780 101.60 57.15 16.51 3.5226 24.271 85.495 24.413 60 112
KSF400-075A
103.120 55.750 17.780 101.60 57.15 16.51 3.5226 24.271 85.495 24.413 75 137
KSF400-090A
103.120 55.750 17.780 101.60 57.15 16.51 3.5226 24.271 85.495 24.413 90 164
KSF520
133.960 77.040 21.720 132.54 78.59 20.32 5.3471 32.428 173.4 46.612 More More -
-
KSF520-026A
133.960 77.040 21.720 132.54 78.59 20.32 5.3471 32.428 173.4 46.612 26 54
KSF520-060A
133.960 77.040 21.720 132.54 78.59 20.32 5.3471 32.428 173.4 46.612 60 124
KSF520-075A
133.960 77.040 21.720 132.54 78.59 20.32 5.3471 32.428 173.4 46.612 75 155
KSF520-090A
133.960 77.040 21.720 132.54 78.59 20.32 5.3471 32.428 173.4 46.612 90 187
KSF521
133.960 77.040 26.800 132.54 78.59 25.40 6.71 32.429 217.58 46.612 More More -
-
KSF521-026A
133.960 77.040 26.800 132.54 78.59 25.40 6.71 32.429 217.58 46.612 26 68
KSF521-060A
133.960 77.040 26.800 132.54 78.59 25.40 6.71 32.429 217.58 46.612 60 156
KSF521-075A
133.960 77.040 26.800 132.54 78.59 25.40 6.71 32.429 217.58 46.612 75 195
KSF521-090A
133.960 77.040 26.800 132.54 78.59 25.40 6.71 32.429 217.58 46.612 90 234
KSF650
167.20 86.900 52.900 165.00 88.90 50.80 9.46 38.65 731.26 59.31 More More -
-
KS050-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 More More -
-
KS050-026A-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 26 12
KS050-060A-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 60 27
KS050-075A-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 75 34
KS050-090A-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 90 40
KS050-125A-HF
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 125 56
KS065-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 More More -
-
KS065-026A-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 26 15
KS065-060A-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 60 35
KS065-075A-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 75 43
KS065-090A-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 90 52
KS065-125A-HF
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 125 72
KS068-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 More More -
-
KS068-026A-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 26 19
KS068-060A-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 60 43
KS068-075A-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 75 53
KS068-090A-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 90 64
KS068-125A-HF
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 125 89
KS080-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 More More -
-
KS080-026A-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 26 14
KS080-060A-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 60 32
KS080-075A-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 75 41
KS080-090A-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 90 49
KS080-125A-HF
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 125 68
KS090-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 More More -
-
KS090-026A-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 26 19
KS090-060A-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 60 43
KS090-075A-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 75 54
KS090-090A-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 90 65
KS090-125A-HF
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 125 90
KS090-026A-E14-HF
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 26 35
KS090-060A-E14-HF
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 60 79
KS090-075A-E14-HF
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 75 99
KS090-090A-E14-HF
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 90 119
KS092-HF
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 More More -
-
KS092-026A-HF
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 26 22
KS092-060A-HF
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 60 51
KS092-075A-HF
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 75 63
KS092-090A-HF
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 90 76
KS092-026A-E14-HF
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 26 35
KS092-060A-E14-HF
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 60 80
KS092-075A-E14-HF
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 75 99
KS092-090A-E14-HF
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 90 120
KS092-026A-E18-HF
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 26 45
KS092-060A-E18-HF
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 60 103
KS092-075A-E18-HF
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 75 128
KS092-090A-E18-HF
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 90 154
KS107-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 More More -
-
KS107-026A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 26 22
KS107-060A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 60 59
KS107-075A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 75 74
KS107-090A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 90 89
KS107-125A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 125 123 -
KS106-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 More More -
-
KS106-026A-HF
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 26 32
KS106-060A-HF
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 60 75
KS106-075A-HF
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 75 94
KS106-090A-HF
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 90 113
KS106-026A-E14-HF
27.70  14.10  15.00  26.90  14.70  14.00  0.818 6.35 5.194 1.56 26 40.02446483
KS106-060A-E14-HF
27.70  14.10  15.00  26.90  14.70  14.00  0.818 6.35 5.194 1.56 60 94
KS106-075A-E14-HF
27.70  14.10  15.00  26.90  14.70  14.00  0.818 6.35 5.194 1.56 75 118
KS106-090A-E14-HF
27.70  14.10  15.00  26.90  14.70  14.00  0.818 6.35 5.194 1.56 90 141
KS106-026A-E18-HF
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 26 51
KS106-060A-E18-HF
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 60 120
KS106-075A-E18-HF
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 75 151
KS106-090A-E18-HF
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 90 181
KS131-HF
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 More More -
-
KS131-026A-HF
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 26 22
KS131-060A-HF
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 60 51
KS131-075A-HF
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 75 64
KS131-090A-HF
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 90 76.5
KS135-HF
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 More More -
-
KS135-026A-HF
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 26 16
KS135-060A-HF
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 60 38
KS135-075A-HF
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 75 47
KS135-090A-HF
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 90 57
KS132-HF
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 More More -
-
KS132-026A-HF
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 26 28
KS132-060A-HF
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 60 65
KS132-075A-HF
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 75 81
KS132-090A-HF
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 90 97
KS141-HF
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 More More -
-
KS141-026A-HF
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 26 24
KS141-060A-HF
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 60 56
KS141-075A-HF
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 75 70
KS141-090A-HF
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 90 84
KS130-HF
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 More More -
-
KS130-026A-E14-HF
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 26 37
KS130-026A-HF
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 26 28
KS130-060A-E14-HF
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 60 80
KS130-060A-HF
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 60 61
KS130-075A-E14-HF
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 75 99
KS130-075A-HF
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 75 76
KS130-090A-E14-HF
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 90 119
KS130-090A-HF
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 90 91
KS130-026A-E18-HF
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 26 47
KS130-060A-E18-HF
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 60 103
KS130-075A-E18-HF
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 75 128
KS130-090A-E18-HF
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 90 153
KS157-HF
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 More More -
-
KS157-026A-HF
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 26 35
KS157-060A-HF
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 60 81
KS157-075A-HF
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 75 101
KS157-090A-HF
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 90 121
KS168-HF
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 More More -
-
KS168-026A-HF
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 26 47
KS168-060A-HF
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 60 108
KS168-075A-HF
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 75 135
KS168-090A-HF
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 90 161
KS158-HF
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 More More -
-
KS158-026A-HF
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 26 53
KS158-060A-HF
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 60 122
KS158-075A-HF
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 75 152
KS158-090A-HF
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 90 183
KS184-HF
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 More More -
-
KS184-026A-HF
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 26 59
KS184-060A-HF
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 60 135
KS184-075A-HF
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 75 169
KS184-090A-HF
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 90 202
KS185-HF
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 More More -
-
KS185-026A-HF
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 26 37
KS185-060A-HF
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 60 86
KS185-075A-HF
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 75 107
KS185-090A-HF
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 90 128
KS200-HF
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 More More -
-
KS200-026A-HF
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 26 32
KS200-060A-HF
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 60 73
KS200-075A-HF
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 75 91
KS200-090A-HF
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 90 109
KS226-HF
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 More More -
-
KS226-026A-HF
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 26 60
KS226-060A-HF
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 60 138
KS226-075A-HF
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 75 175
KS226-090A-HF
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 90 207
KS225-HF
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 More More -
-
KS225-026A-HF
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 26 33
KS225-060A-HF
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 60 75
KS225-075A-HF
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 75 94
KS225-090A-HF
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 90 112
KS250-HF
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 More More -
-
KS250-026A-E18-HF
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 26 60
KS250-060A-E18-HF
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 60 138
KS250-075A-E18-HF
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 75 173
KS250-090A-E18-HF
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 90 207
KS250-026A-E20-HF
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 26 66
KS250-060A-E20-HF
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 60 154
KS250-075A-E20-HF
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 75 192
KS250-090A-E20-HF
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 90 230
KS250-026A-HF
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 26 83
KS250-060A-HF
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 60 192
KS250-075A-HF
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 75 240
KS250-090A-HF
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 90 288
KS268-HF
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 More More -
-
KS268-026A-HF
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 26 62
KS268-060A-HF
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 60 143
KS268-075A-HF
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 75 179
KS268-090A-HF
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 90 214
KS300-HF
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 More More -
-
KS300-026A-HF
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 26 30
KS300-060A-HF
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 60 68
KS300-075A-HF
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 75 85
KS300-090A-HF
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 90 102
KS301-HF
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 More More -
-
KS301-026A-HF
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 26 37
KS301-060A-HF
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 60 85
KS301-075A-HF
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 75 107
KS301-090A-HF
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 90 128
KS290-HF
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 More More -
-
KS290-026A-HF
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 26 89
KS290-060A-HF
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 60 206
KS290-075A-HF
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 75 257
KS290-090A-HF
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 90 309
KS401-HF
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 More More -
-
KS401-026A-HF
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 26 40
KS401-060A-HF
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 60 92
KS401-075A-HF
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 75 115
KS401-090A-HF
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 90 139
KS400-HF
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 More More -
-
KS400-026A-HF
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 26 48
KS400-060A-HF
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 60 112
KS400-075A-HF
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 75 137
KS400-090A-HF
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 90 164
KS520-HF
133.96  77.04  21.72  132.54  78.59  20.32  5.3471 32.428 173.4 46.612 More More -
-
KS520-026A-HF
133.96  77.04  21.72  132.54  78.59  20.32  5.3471 32.428 173.4 46.612 26 54
KS520-060A-HF
133.96  77.04  21.72  132.54  78.59  20.32  5.3471 32.428 173.4 46.612 60 124
KS521-HF
133.96  77.04  26.80  132.54  78.59  25.40  6.71 32.429 217.58 46.612 More More -
-
KS521-026A-HF
133.96  77.04  26.80  132.54  78.59  25.40  6.71 32.429 217.58 46.612 26 68
KS521-060A-HF
133.96  77.04  26.80  132.54  78.59  25.40  6.71 32.429 217.58 46.612 60 156
KNF050
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 More More -
-
KNF050-026A
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 26 12
KNF050-060A
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 60 27
KNF050-075A
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 75 34
KNF050-090A
13.46  6.99  5.51  12.70  7.62  4.75  0.114 3.12 0.356 0.383 90 40
KNF065
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 More More -
-
KNF065-026A
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 26 15
KNF065-060A
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 60 35
KNF065-075A
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 75 43
KNF065-090A
17.40  9.53  7.11  16.50  10.20  6.35  0.192 4.11 0.789 0.713 90 52
KNF068
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 More More -
-
KNF068-026A
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 26 19
KNF068-060A
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 60 43
KNF068-075A
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 75 53
KNF068-090A
18.03  9.02  7.11  17.30  9.65  6.35  0.232 4.14 0.96 0.638 90 64
KNF080
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 More More -
-
KNF080-026A
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 26 14
KNF080-060A
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 60 32
KNF080-075A
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 75 41
KNF080-090A
21.10  12.07  7.11  20.30  12.70  6.35  0.226 5.09 1.15 1.14 90 49
KNF107
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 More More -
-
KNF107-026A
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 26 22
KNF107-060A
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 60 59
KNF107-075A
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 75 74
KNF107-090A
27.70  14.10  9.45  26.90  14.70  8.64  0.497 6.352 3.155 1.56 90 89
KNF090
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 More More -
-
KNF090-026A
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 26 19
KNF090-060A
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 60 43
KNF090-060A-E14
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 60 79
KNF090-075A
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 75 54
KNF090-075A-E14
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 75 99
KNF090-090A
23.62  13.39  8.38  22.90  14.70  7.62  0.331 5.67 1.88 1.41 90 65
KNF090-090A-E14
23.62  13.39  15.00  22.90  15.00  14.00  0.608 5.67 3.454 1.41 90 119
KNF092
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 More More -
-
KNF092-026A
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 26 22
KNF092-060A
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 60 51
KNF092-060A-E14
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 60 80
KNF092-075A
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 75 63
KNF092-075A-E14
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 75 99
KNF092-090A
24.30  13.77  9.70  23.60  14.40  8.89  0.388 5.88 2.28 1.49 90 76
KNF092-090A-E14
24.30  13.77  15.00  23.60  15.00  14.00  0.611 5.88 3.591 1.49 90 120
KNF092-060A-E18
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 60 103
KNF092-075A-E18
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 75 128
KNF092-090A-E18
24.30  13.77  19.00  23.60  14.40  18.00  0.786 5.88 4.616 1.49 90 154
KNF106
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 More More -
-
KNF106-026A
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 26 32
KNF106-060A
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 60 75
KNF106-075A
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 75 94
KNF106-090A
27.70  14.10  11.99  26.90  14.70  11.20  0.654 6.35 4.15 1.56 90 113
KNF106-060A-E18
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 60 120
KNF106-075A-E18
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 75 151
KNF106-090A-E18
27.70  14.10  19.00  26.90  14.70  18.00  1.051 6.35 6.67 1.56 90 181
KNF131
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 More More -
-
KNF131-026A
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 26 22
KNF131-060A
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 60 51
KNF131-075A
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 75 64
KNF131-090A
33.83  19.30  9.70  33.00  19.90  8.76  0.551 8.147 4.49 2.93 90 76.5
KNF135
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 More More -
-
KNF135-026A
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 26 16
KNF135-060A
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 60 38
KNF135-075A
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 75 47
KNF135-090A
35.10  22.56  9.83  34.30  23.40  8.89  0.454 8.95 4.06 4.01 90 57
KNF130
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 More More -
-
KNF130-026A
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 26 28
KNF130-060A
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 60 61
KNF130-075A
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 75 76
KNF130-090A
33.83  19.30  11.61  33.00  19.90  10.70  0.672 8.15 5.48 2.93 90 91
KNF130-060A-E14
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 60 80
KNF130-075A-E14
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 75 99
KNF130-090A-E14
33.83  19.30  15.00  33.00  19.90  14.00  0.879 8.15 7.17 2.93 90 119
KNF130-060A-E18
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 60 103
KNF130-075A-E18
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 75 128
KNF130-090A-E18
33.83  19.30  19.00  33.00  19.90  18.00  1.13 8.15 9.219 2.93 90 153
KNF132
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 More More -
-
KNF132-026A
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 26 28
KNF132-060A
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 60 65
KNF132-075A
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 75 81
KNF132-090A
33.83  19.30  11.99  33.00  19.90  11.18  0.698 8.147 5.687 2.93 90 97
KNF141
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 More More -
-
KNF141-026A
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 26 24
KNF141-060A
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 60 56
KNF141-075A
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 75 70
KNF141-090A
36.63  21.54  11.28  35.80  22.40  10.50  0.678 8.98 6.088 3.64 90 84
KNF157-026A
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 26 35
KNF157
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 More More -
-
KNF157-060A
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 60 81
KNF157-075A
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 75 101
KNF157-090A
40.72  23.30  15.37  39.90  24.10  14.50  1.072 9.84 10.5 4.27 90 121
KNF168
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 More More -
-
KNF168-026A
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 26 47
KNF168-060A
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 60 108
KNF168-075A
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 75 135
KNF168-090A
44.00  23.30  17.16  42.90  24.20  16.26  1.475 10.216 15.741 3.644 90 161
KNF158
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 More More -
-
KNF158-026A
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 26 53
KNF158-060A
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 60 122
KNF158-075A
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 75 152
KNF158-090A
40.94  21.27  17.89  40.13  22.08  17.00  1.537 9.51 15.043 3.551 90 183
KNF184
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 More More -
-
KNF184-026A
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 26 59
KNF184-060A
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 60 135
KNF184-075A
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 75 169
KNF184-090A
47.63  23.32  18.92  46.70  24.10  18.00  1.99 10.74 21.3 4.27 90 202
KNF185
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 More More -
-
KNF185-026A
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 26 37
KNF185-060A
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 60 86
KNF185-075A
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 75 107
KNF185-090A
47.63  27.89  16.13  46.70  28.70  15.20  1.34 11.63 15.53 6.11 90 128
KNF200
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 More More -
-
KNF200-026A
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 26 32
KNF200-060A
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 60 73
KNF200-075A
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 75 91
KNF200-090A
51.69  30.94  14.35  50.80  31.80  13.50  1.251 12.73 15.93 7.5 90 109
KNF226
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 More More -
-
KNF226-026A
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 26 60
KNF226-060A
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 60 138
KNF226-075A
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 75 175
KNF226-090A
58.00  25.60  16.10  57.20  26.40  15.20  2.29 12.5 28.6 5.14 90 207
KNF225
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 More More -
-
KNF225-026A
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 26 33
KNF225-060A
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 60 75
KNF225-075A
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 75 94
KNF225-090A
58.00  34.70  14.86  57.20  35.60  14.00  1.444 14.3 20.65 9.48 90 112
KNF250
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 More More -
-
KNF250-060A-E18
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 60 138
KNF250-075A-E18
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 75 173
KNF250-090A-E18
63.10  31.37  19.27  62.00  32.60  18.00  2.646 14.37 38.023 7.73 90 207
KNF250-060A-E20
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 60 154
KNF250-075A-E20
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 75 192
KNF250-090A-E20
63.10  31.37  21.27  62.00  32.60  20.00  2.94 14.37 42.248 7.73 90 230
KNF250-026A
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 26 83
KNF250-060A
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 60 192
KNF250-075A
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 75 240
KNF250-090A
63.10  31.37  26.27  62.00  32.60  25.00  3.675 14.37 52.81 7.73 90 288
KNF268
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 More More -
-
KNF268-026A
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 26 62
KNF268-060A
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 60 143
KNF268-075A
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 75 179
KNF268-090A
69.40  34.70  21.40  68.00  36.00  20.00  3.104 16.33 50.69 9.62 90 214
KNF300
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 More More -
-
KNF300-026A
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 26 30
KNF300-060A
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 60 68
KNF300-075A
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 75 85
KNF300-090A
78.90  48.20  13.84  77.80  49.20  12.70  1.77 20 34.7 17.99 90 102
KNF301
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 More More -
-
KNF301-026A
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 26 37
KNF301-060A
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 60 85
KNF301-075A
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 75 107
KNF301-090A
78.90  48.20  17.02  77.80  49.20  15.90  2.27 19.95 45.3 17.99 90 128
KNF290
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 More More -
-
KNF290-026A
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 26 89
KNF290-060A
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 60 206
KNF290-075A
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 75 257
KNF290-090A
75.20  44.07  36.27  74.10  45.30  35.00  5.04 18.38 92.64 15.25 90 309
KNF401
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 More More -
-
KNF401-026A
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 26 40
KNF401-060A
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 60 92
KNF401-075A
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 75 115
KNF401-090A
103.12  55.75  14.86  101.60  57.15  13.59  2.9716 24.271 72.122 24.413 90 139
KNF400
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 More More -
-
KNF400-026A
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 26 48
KNF400-060A
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 60 112
KNF400-075A
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 75 137
KNF400-090A
103.12  55.75  17.78  101.60  57.15  16.51  3.5226 24.271 85.495 24.413 90 164
KNF520
133.96  77.04  21.72  132.54  78.59  20.32  5.3471 32.428 173.4 46.612 More More -
-
KNF520-060A
133.96  77.04  21.72  132.54  78.59  20.32  5.3471 32.428 173.4 46.612 60 124
KNF521
133.96  77.04  26.80  132.54  78.59  25.40  6.71 32.429 217.58 46.612 More More -
-
KNF521-060A
133.96  77.04  26.80  132.54  78.59  25.40  6.71 32.429 217.58 46.612 60 156
KT50
12.7 7.7 4.83 — — — More More More — — More -
-
KT50-2
12.7 7.7 4.83 — — — 0.112 3.19 0.358 — — 4.9
KT50-8
12.7 7.7 4.83 — — — 0.112 3.19 0.358 — — 17.5
KT50-26
12.7 7.7 4.83 — — — 0.112 3.19 0.358 — — 33
KT50-40
12.7 7.7 4.83 — — — 0.112 3.19 0.358 — — 29.5
KT50-52
12.7 7.7 4.83 — — — 0.112 3.19 0.358 — — 33
KT50-8B
12.7 7.7 6.35 — — — 0.148 3.19 0.471 — — 23
KT50-26B
12.7 7.7 6.35 — — — 0.148 3.19 0.471 — — 43.5
KT50-40B
12.7 7.7 6.35 — — — 0.148 3.19 0.471 — — 38.5
KT50-52B
12.7 7.7 6.35 — — — 0.148 3.19 0.471 — — 43.5
KT50-26D
12.7 7.7 9.53 — — — 0.223 3.19 0.711 — — 72
KT50-40D
12.7 7.7 9.53 — — — 0.223 3.19 0.711 — — 59
KT50-52D
12.7 7.7 9.53 — — — 0.223 3.19 0.711 — — 66
KT51
12.7 5.08 6.35 — — — More More More — — More -
-
KT51-8C
12.7 5.08 6.35 — — — 0.223 2.79 0.622 — — 37
KT51-26C
12.7 5.08 6.35 — — — 0.223 2.79 0.622 — — 83
KT51-40C
12.7 5.08 6.35 — — — 0.223 2.79 0.622 — — 67
KT51-52C
12.7 5.08 6.35 — — — 0.223 2.79 0.622 — — 75
KT57
14.6 6.93 4.98 — — — More More More — — More -
-
KT57-52
14.6 6.93 4.98 — — — 0.178 3.38 0.601 — — 49.5
KT57-52A
14.6 6.93 4.98 — — — 0.178 3.38 0.601 — — 66
KT60
15.2 8.53 5.94 — — — More More More — — More -
-
KT60-2
15.2 8.53 5.94 — — — 0.187 3.74 0.699 — — 6.5
KT60-8
15.2 8.53 5.94 — — — 0.187 3.74 0.699 — — 19
KT60-40
15.2 8.53 5.94 — — — 0.187 3.74 0.699 — — 41.5
KT60-52
15.2 8.53 5.94 — — — 0.187 3.74 0.699 — — 47
KT60-26D
15.2 8.53 11.9 — — — 0.374 3.74 1.4 — — 97
KT60-52D
15.2 8.53 11.9 — — — 0.374 3.74 1.4 — — 94
KT68
17.5 9.4 4.83 — — — More More More — — More -
-
KT68-2
17.5 9.4 4.83 — — — 0.179 4.23 0.759 — — 5.7
KT68-8
17.5 9.4 4.83 — — — 0.179 4.23 0.759 — — 19.5
KT68-26
17.5 9.4 4.83 — — — 0.179 4.23 0.759 — — 43.5
KT68-40
17.5 9.4 4.83 — — — 0.179 4.23 0.759 — — 35
KT68-52
17.5 9.4 4.83 — — — 0.179 4.23 0.759 — — 40
KT68-2A
17.5 9.4 6.35 — — — 0.242 4.23 1.03 — — 7
KT68-8A
17.5 9.4 6.35 — — — 0.242 4.23 1.03 — — 26
KT68-26A
17.5 9.4 6.35 — — — 0.242 4.23 1.03 — — 58
KT68-40A
17.5 9.4 6.35 — — — 0.242 4.23 1.03 — — 47
KT68-52A
17.5 9.4 6.35 — — — 0.242 4.23 1.03 — — 54
KT68-2D
17.5 9.4 9.53 — — — 0.358 4.23 1.52 — — 11.4
KT68-26D
17.5 9.4 9.53 — — — 0.358 4.23 1.52 — — 87
KT68-40D
17.5 9.4 9.53 — — — 0.358 4.23 1.52 — — 70
KT68-52D
17.5 8.53 9.32 — — — 0.394 4.09 1.61 — — 80
KT72
18.3 7.11 6.6 — — — More More More — — More -
-
KT72-2
18.3 7.11 6.6 — — — 0.349 4.01 1.4 — — 12.8
KT72-8
18.3 7.11 6.6 — — — 0.349 4.01 1.4 — — 36
KT72-26
18.3 7.11 6.6 — — — 0.349 4.01 1.4 — — 90
KT72-40
18.3 7.11 6.6 — — — 0.349 4.01 1.4 — — 71
KT72-52
18.3 7.11 6.6 — — — 0.349 4.01 1.4 — — 82
KT80
20.2 12.6 6.35 — — — More More More — — More -
-
KT80-2
20.2 12.6 6.35 — — — 0.231 5.14 1.19 — — 5.5
KT80-8
20.2 12.6 6.35 — — — 0.231 5.14 1.19 — — 18
KT80-26
20.2 12.6 6.35 — — — 0.231 5.14 1.19 — — 46
KT80-40
20.2 12.6 6.35 — — — 0.231 5.14 1.19 — — 39.5
KT80-52
20.2 12.6 6.35 — — — 0.231 5.14 1.19 — — 42
KT80-8B
20.2 12.6 9.53 — — — 0.347 5.14 1.78 — — 29.5
KT80-26B
20.2 12.6 9.53 — — — 0.347 5.14 1.78 — — 71
KT80-40B
20.2 12.6 9.53 — — — 0.347 5.14 1.78 — — 59
KT80-52B
20.2 12.6 9.53 — — — 0.347 5.14 1.78 — — 63
KT80-26D
20.2 12.6 12.7 — — — 0.453 5.14 2.33 — — 92
KT80-40D
20.2 12.6 12.7 — — — 0.453 5.14 2.33 — — 79
KT80-52D
20.2 12.6 12.7 — — — 0.453 5.14 2.33 — — 83
KT90
22.9 14 9.53 — — — More More More — — More -
-
KT90-8
22.9 14 9.53 — — — 0.395 5.78 2.28 — — 30
KT90-26
22.9 14 9.53 — — — 0.395 5.78 2.28 — — 70
KT90-40
22.9 14 9.53 — — — 0.395 5.78 2.28 — — 57
KT90-52
22.9 14 9.53 — — — 0.395 5.78 2.28 — — 64
KT94
23.9 14.2 7.92 — — — More More More — — More -
-
KT94-2
23.9 14.2 7.92 — — — 0.362 5.97 2.16 — — 8.4
KT94-8
23.9 14.2 7.92 — — — 0.362 5.97 2.16 — — 25
KT94-26
23.9 14.2 7.92 — — — 0.362 5.97 2.16 — — 60
KT94-40
23.9 14.2 7.92 — — — 0.362 5.97 2.16 — — 49
KT94-52
23.9 14.2 7.92 — — — 0.362 5.97 2.16 — — 57
KT106
26.9 14.5 11.1 — — — More More More — — More -
-
KT106-2
26.9 14.5 11.1 — — — 0.659 6.49 0.659 — — 13.5
KT106-8
26.9 14.5 11.1 — — — 0.659 6.49 0.659 — — 45
KT106-26
26.9 14.5 11.1 — — — 0.659 6.49 0.659 — — 93
KT106-40
26.9 14.5 11.1 — — — 0.659 6.49 0.659 — — 81
KT106-52
26.9 14.5 11.1 — — — 0.659 6.49 0.659 — — 95
KT106-26A
26.9 14.5 7.92 — — — 0.461 6.49 3 — — 67
KT106-40A
26.9 14.5 7.92 — — — 0.461 6.49 3 — — 58
KT106-52A
26.9 14.5 7.92 — — — 0.461 6.49 3 — — 67
KT106-26B
26.9 14.5 14.6 — — — 0.858 6.49 5.57 — — 124
KT106-40B
26.9 14.5 14.6 — — — 0.858 6.49 5.57 — — 106
KT106-52B
26.9 14.5 14.6 — — — 0.858 6.49 5.57 — — 124
KT124
31.6 18 7.11 — — — More More More — — More -
-
KT124-26
31.6 18 7.11 — — — 0.459 7.75 3.55 — — 58
KT130
33.0 19.8 11.1 — — — More More More — — More -
-
KT130-2
33.0 19.8 11.1 — — — 0.698 8.28 5.78 — — 11
KT130-8
33.0 19.8 11.1 — — — 0.698 8.28 5.78 — — 35
KT130-26
33.0 19.8 11.1 — — — 0.698 8.28 5.78 — — 81
KT130-40
33.0 19.8 11.1 — — — 0.698 8.28 5.78 — — 69
KT130-52
33.0 19.8 11.1 — — — 0.698 8.28 5.78 — — 79
KT130-26A
33.0 19.8 5.72 — — — 0.361 8.28 2.99 — — 41
KT131
33.0 16.3 11.1 — — — More More More — — More -
-
KT131-8
33.0 16.3 11.1 — — — 0.885 7.72 6.84 — — 52.5
KT131-40
33.0 16.3 11.1 — — — 0.885 7.72 6.84 — — 93
KT131-52
33.0 16.3 11.1 — — — 0.885 7.72 6.84 — — 108
KT132
33.0 17.8 11.1 — — — More More More — — More -
-
KT132-26
33.0 17.8 11.1 — — — 0.805 7.96 6.41 — — 103
KT132-40
33.0 17.8 11.1 — — — 0.805 7.96 6.41 — — 83
KT132-52
33.0 17.8 11.1 — — — 0.805 7.96 6.41 — — 95
KT141
35.9 22.4 10.5 — — — More More More — — More -
-
KT141-8
35.9 22.4 10.5 — — — 0.674 9.14 6.16 — — 32
KT141-26
35.9 22.4 10.5 — — — 0.674 9.14 6.16 — — 75
KT141-40
35.9 22.4 10.5 — — — 0.674 9.14 6.16 — — 60
KT141-52
35.9 22.4 10.5 — — — 0.674 9.14 6.16 — — 69
KT150
38.4 21.5 11.1 — — — More More More — — More -
-
KT150-26
38.4 21.5 11.1 — — — 0.887 9.38 8.31 — — 96
KT150-40
38.4 21.5 11.1 — — — 0.887 9.38 8.31 — — 78
KT150-52
38.4 21.5 11.1 — — — 0.887 9.38 8.31 — — 89
KT150-26A
38.4 21.5 8.26 — — — 0.657 9.38 6.16 — — 66
KT157
39.9 24.1 14.5 — — — More More More — — More -
-
KT157-2
39.9 24.1 14.5 — — — 1.06 10.1 10.7 — — 14
KT157-8
39.9 24.1 14.5 — — — 1.06 10.1 10.7 — — 42
KT157-26
39.9 24.1 14.5 — — — 1.06 10.1 10.7 — — 100
KT157-40
39.9 24.1 14.5 — — — 1.06 10.1 10.7 — — 86
KT157-52
39.9 24.1 14.5 — — — 1.06 10.1 10.7 — — 99
KT175
44.5 27.2 16.5 — — — More More More — — More -
-
KT175-8
44.5 27.2 16.5 — — — 1.34 11.2 15 — — 48
KT175-26
44.5 27.2 16.5 — — — 1.34 11.2 15 — — 105
KT175-40
44.5 27.2 16.5 — — — 1.34 11.2 15 — — 90
KT175-52
44.5 27.2 16.5 — — — 1.34 11.2 15 — — 105
KT184
46.7 24.1 18 — — — More More More — — More -
-
KT184-2
46.7 24.1 18 — — — 1.88 11.2 21 — — 24
KT184-8
46.7 24.1 18 — — — 1.88 11.2 21 — — 72
KT184-40
46.7 24.1 18 — — — 1.88 11.2 21 — — 143
KT184-52
46.7 24.1 18 — — — 1.88 11.2 21 — — 159
KT200
50.8 31.8 14 — — — More More More — — More -
-
KT200-2
50.8 31.8 14 — — — 1.27 13 16.5 — — 12
KT200-8
50.8 31.8 14 — — — 1.27 13 16.5 — — 42.5
KT200-40
50.8 31.8 14 — — — 1.27 13 16.5 — — 79
KT200-52
50.8 31.8 14 — — — 1.27 13 16.5 — — 92
KT200-2B
50.8 31.8 25.4 — — — 2.32 13 30 — — 21.8
KT200-8B
50.8 31.8 25.4 — — — 2.32 13 30 — — 78.5
KT200-40B
50.8 31.8 25.4 — — — 2.32 13 30 — — 142
KT200-52B
50.8 31.8 25.4 — — — 2.32 13 30 — — 155
KT201
50.8 24.1 22.2 — — — More More More — — More -
-
KT201-8
50.8 24.1 22.2 — — — 2.81 11.8 33.2 — — 104
KT201-26
50.8 24.1 22.2 — — — 2.81 11.8 33.2 — — 224
KT201-40
50.8 24.1 22.2 — — — 2.81 11.8 33.2 — — 194
KT201-52
50.8 24.1 22.2 — — — 2.81 11.8 33.2 — — 224
KT224
57.2 31.8 19.1 — — — More More More — — More -
-
KT224-26
57.2 31.8 19.1 — — — 2.31 14 32.2 — — 155
KT224-52C
57.2 31.8 19.1 — — — 2.31 14 32.2 — — 155
KT225
57.2 35.7 14 — — — More More More — — More -
-
KT225-2
57.2 35.7 14 — — — 1.42 14.6 20.7 — — 12
KT225-8
57.2 35.7 14 — — — 1.42 14.6 20.7 — — 42.5
KT225-40
57.2 35.7 14 — — — 1.42 14.6 20.7 — — 78
KT225-52
57.2 35.7 14 — — — 1.42 14.6 20.7 — — 92
KT225-2B
57.2 35.7 25.4 — — — 2.59 14.6 37.8 — — 21.5
KT225-26B
57.2 35.7 25.4 — — — 2.59 14.6 37.8 — — 160
KT225-52B
57.2 35.7 25.4 — — — 2.59 14.6 37.8 — — 155
KT249
63.5 35.7 25.4 — — — More More More — — More -
-
KT249-26
63.5 35.7 25.4 — — — 3.36 15.6 52.3 — — 203
KT249-52
63.5 35.7 25.4 — — — 3.36 15.6 52.3 — — 203
KT250
63.5 31.8 25.4 — — — More More More — — More -
-
KT250-8
63.5 31.8 25.4 — — — 3.84 15 57.4 — — 113
KT250-40
63.5 31.8 25.4 — — — 3.84 15 57.4 — — 194
KT250-52
63.5 31.8 25.4 — — — 3.84 15 57.4 — — 242
KT260
67.9 40.7 25.4 — — — More More More — — More -
-
KT260-26
67.9 40.7 25.4 — — — 3.45 17.1 59 — — 175
KT260-40
67.9 40.7 25.4 — — — 3.45 17.1 59 — — 140
KT260-52
67.9 40.7 25.4 — — — 3.45 17.1 59 — — 175
KT300
77.2 49 12.7 — — — More More More — — More -
-
KT300-2
77.2 49 12.7 — — — 1.68 19.8 33.4 — — 11.4
KT300-8
77.2 49 12.7 — — — 1.68 19.8 33.4 — — 37
KT300-40
77.2 49 12.7 — — — 1.68 19.8 33.4 — — 71
KT300-52
77.2 49 12.7 — — — 1.68 19.8 33.4 — — 80
KT300-2D
77.2 49 25.4 — — — 3.38 19.8 67 — — 22.8
KT300-40D
77.2 49 25.4 — — — 3.38 19.8 67 — — 142
KT300-52D
77.2 49 25.4 — — — 3.38 19.8 67 — — 160
KT350
89 54.4 25.4 — — — More More More — — More -
-
KT350-26
89 54.4 25.4 — — — 4.39 22.5 98 — — 171
KT350-40
89 54.4 25.4 — — — 4.39 22.5 98 — — 137
KT350-52
89 54.4 25.4 — — — 4.39 22.5 98 — — 171
KT400
102 57.2 16.5 — — — More More More — — More -
-
KT400-2
102 57.2 16.5 — — — 3.46 25 86.4 — — 18
KT400-8
102 57.2 16.5 — — — 3.46 25 86.4 — — 60
KT400-40
102 57.2 16.5 — — — 3.46 25 86.4 — — 115
KT400-52
102 57.2 16.5 — — — 3.46 25 86.4 — — 131
KT400-26B
102 57.2 25.4 — — — 5.35 25 133 — — 205
KT400-2D
102 57.2 33 — — — 6.85 25 171 — — 36
KT400-26D
102 57.2 33 — — — 6.85 25 171 — — 262
KT400-40D
102 57.2 33 — — — 6.85 25 171 — — 230
KT520
132 78.2 20.3 — — — More More More — — More -
-
KT520-2
132 78.2 20.3 — — — 5.24 33.1 173 — — 20
KT520-8
132 78.2 20.3 — — — 5.24 33.1 173 — — 65
KT520-26
132 78.2 20.3 — — — 5.24 33.1 173 — — 149
KT520-28
132 78.2 20.3 — — — 5.24 33.1 173 — — 45
KT520-40
132 78.2 20.3 — — — 5.24 33.1 173 — — 119
KT520-52
132 78.2 20.3 — — — 5.24 33.1 173 — — 137
KT520-40D
132 78.2 40.6 — — — 10.5 33.1 347 — — 240
KT650
165 88.9 50.8 — — — More More More — — More -
-
KT650-2
165 88.9 50.8 — — — 18.4 39.9 734 — — 58
KT650-8
165 88.9 50.8 — — — 18.4 39.9 734 — — 200
KT650-26
165 88.9 50.8 — — — 18.4 39.9 734 — — 434
KT650-40
165 88.9 50.8 — — — 18.4 39.9 734 — — 376
KT650-52
165 88.9 50.8 — — — 18.4 39.9 734 — — 405

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters

Series
KS050
KS050-026A
KS050-060A
KS050-075A
KS050-090A
KS050-125A
KS065
KS065-026A
KS065-060A
KS065-075A
KS065-090A
KS065-125A
KS068
KS068-026A
KS068-060A
KS068-075A
KS068-090A
KS068-125A
KS080
KS080-026A
KS080-060A
KS080-075A
KS080-090A
KS080-125A
KS090
KS090-026A
KS090-060A
KS090-075A
KS090-090A
KS090-125A
KS090-026A-E14
KS090-060A-E14
KS090-075A-E14
KS090-090A-E14
KS090-125A-E14
KS092
KS092-026A
KS092-060A
KS092-075A
KS092-090A
KS092-125A
KS092-026A-E14
KS092-060A-E14
KS092-075A-E14
KS092-090A-E14
KS092-125A-E14
KS092-026A-E18
KS092-060A-E18
KS092-075A-E18
KS092-090A-E18
KS092-125A-E18
KS107
KS107-026A
KS107-060A
KS107-075A
KS107-090A
KS107-125A
KS106
KS106-026A
KS106-060A
KS106-075A
KS106-090A
KS106-125A
KS106-026A-E14
KS106-060A-E14
KS106-075A-E14
KS106-090A-E14
KS106-125A-E14
KS106-026A-E18
KS106-060A-E18
KS106-075A-E18
KS106-090A-E18
KS106-125A-E18
KS131
KS131-026A
KS131-060A
KS131-075A
KS131-090A
KS131-125A
KS135
KS135-026A
KS135-060A
KS135-075A
KS135-090A
KS135-125A
KS130
KS130-026A
KS130-060A
KS130-075A
KS130-090A
KS130-125A
KS130-026A-E14
KS130-060A-E14
KS130-075A-E14
KS130-090A-E14
KS130-125A-E14
KS130-026A-E18
KS130-060A-E18
KS130-075A-E18
KS130-090A-E18
KS130-125A-E18
KS132
KS132-026A
KS132-060A
KS132-075A
KS132-090A
KS132-125A
KS141
KS141-026A
KS141-060A
KS141-075A
KS141-090A
KS141-125A
KS157
KS157-026A
KS157-060A
KS157-075A
KS157-090A
KS157-125A
KS168
KS168-026A
KS168-060A
KS168-075A
KS168-090A
KS168-125A
KS158
KS158-026A
KS158-060A
KS158-075A
KS158-090A
KS158-125A
KS184
KS184-026A
KS184-060A
KS184-075A
KS184-090A
KS184-125A
KS185
KS185-026A
KS185-060A
KS185-075A
KS185-090A
KS185-125A
KS200
KS200-026A
KS200-060A
KS200-075A
KS200-090A
KS200-125A
KS226
KS226-026A
KS226-060A
KS226-075A
KS226-090A
KS226-125A
KS225
KS225-026A
KS225-060A
KS225-075A
KS225-090A
KS225-125A
KS250
KS250-026A-E18
KS250-060A-E18
KS250-075A-E18
KS250-090A-E18
KS250-125A-E18
KS250-026A-E20
KS250-060A-E20
KS250-075A-E20
KS250-090A-E20
KS250-125A-E20
KS250-026A
KS250-060A
KS250-075A
KS250-090A
KS250-125A
KS268
KS268-026A
KS268-060A
KS268-075A
KS268-090A
KS268-125A
KS300
KS300-026A
KS300-060A
KS300-075A
KS300-090A
KS300-125A
KS301
KS301-026A
KS301-060A
KS301-075A
KS301-090A
KS301-125A
KS290
KS290-026A
KS290-040A
KS290-060A
KS290-075A
KS290-090A
KS290-125A
KS401
KS401-026A
KS401-060A
KS401-075A
KS401-090A
KS401-125A
KS400
KS400-026A
KS400-060A
KS400-075A
KS400-090A
KS400-125A
KS520
KS520-026A
KS520-060A
KS520-075A
KS520-090A
KS520-125A
KS521
KS521-026A
KS521-060A
KS521-075A
KS521-090A
KS521-125A
KSF050
KSF050-060A
KSF050-075A
KSF050-090A
KSF065
KSF065-026A
KSF065-060A
KSF065-075A
KSF065-090A
KSF068
KSF068-026A
KSF068-060A
KSF068-075A
KSF068-090A
KSF080
KSF080-026A
KSF080-060A
KSF080-075A
KSF080-090A
KSF090
KSF090-026A
KSF090-060A
KSF090-075A
KSF090-090A
KSF090-060A-E14
KSF090-075A-E14
KSF090-090A-E14
KSF092
KSF092-026A
KSF092-060A
KSF092-075A
KSF092-090A
KSF092-060A-E14
KSF092-075A-E14
KSF092-090A-E14
KSF092-026A-E18
KSF092-060A-E18
KSF092-075A-E18
KSF092-090A-E18
KSF107
KSF107-026A
KSF107-060A
KSF107-075A
KSF107-090A
KSF106
KSF106-026A
KSF106-060A
KSF106-075A
KSF106-090A
KSF106-060A-E14
KSF106-075A-E14
KSF106-090A-E14
KSF106-060A-E18
KSF106-075A-E18
KSF106-090A-E18
KSF131
KSF131-026A
KSF131-060A
KSF131-075A
KSF131-090A
KSF135
KSF135-026A
KSF135-060A
KSF135-075A
KSF135-090A
KSF132
KSF132-026A
KSF132-060A
KSF132-075A
KSF132-090A
KSF141
KSF141-026A
KSF141-060A
KSF141-075A
KSF141-090A
KSF130
KSF130-026A
KSF130-060A-E14
KSF130-060A
KSF130-075A-E14
KSF130-075A
KSF130-090A-E14
KSF130-090A
KSF130-060A-E18
KSF130-075A-E18
KSF130-090A-E18
KSF157
KSF157-026A
KSF157-060A
KSF157-075A
KSF157-090A
KSF168
KSF168-026A
KSF168-060A
KSF168-075A
KSF168-090A
KSF158
KSF158-026A
KSF158-060A
KSF158-075A
KSF158-090A
KSF184
KSF184-026A
KSF184-060A
KSF184-075A
KSF184-090A
KSF185
KSF185-026A
KSF185-060A
KSF185-075A
KSF185-090A
KSF200
KSF200-026A
KSF200-060A
KSF200-075A
KSF200-090A
KSF226
KSF226-026A
KSF226-060A
KSF226-075A
KSF226-090A
KSF225
KSF225-026A
KSF225-060A
KSF225-075A
KSF225-090A
KSF250
KSF250-060A-E18
KSF250-075A-E18
KSF250-090A-E18
KSF250-026A-E20
KSF250-060A-E20
KSF250-075A-E20
KSF250-090A-E20
KSF250-026A
KSF250-060A
KSF250-075A
KSF250-090A
KSF268
KSF268-026A
KSF268-060A
KSF268-075A
KSF268-090A
KSF300
KSF300-026A
KSF300-060A
KSF300-075A
KSF300-090A
KSF301
KSF301-026A
KSF301-060A
KSF301-075A
KSF301-090A
KSF290
KSF290-026A
KSF290-060A
KSF290-075A
KSF290-090A
KSF401
KSF401-026A
KSF401-060A
KSF401-075A
KSF401-090A
KSF400
KSF400-026A
KSF400-060A
KSF400-075A
KSF400-090A
KSF520
KSF520-026A
KSF520-060A
KSF520-075A
KSF520-090A
KSF521
KSF521-026A
KSF521-060A
KSF521-075A
KSF521-090A
KSF650
KS050-HF
KS050-026A-HF
KS050-060A-HF
KS050-075A-HF
KS050-090A-HF
KS050-125A-HF
KS065-HF
KS065-026A-HF
KS065-060A-HF
KS065-075A-HF
KS065-090A-HF
KS065-125A-HF
KS068-HF
KS068-026A-HF
KS068-060A-HF
KS068-075A-HF
KS068-090A-HF
KS068-125A-HF
KS080-HF
KS080-026A-HF
KS080-060A-HF
KS080-075A-HF
KS080-090A-HF
KS080-125A-HF
KS090-HF
KS090-026A-HF
KS090-060A-HF
KS090-075A-HF
KS090-090A-HF
KS090-125A-HF
KS090-026A-E14-HF
KS090-060A-E14-HF
KS090-075A-E14-HF
KS090-090A-E14-HF
KS092-HF
KS092-026A-HF
KS092-060A-HF
KS092-075A-HF
KS092-090A-HF
KS092-026A-E14-HF
KS092-060A-E14-HF
KS092-075A-E14-HF
KS092-090A-E14-HF
KS092-026A-E18-HF
KS092-060A-E18-HF
KS092-075A-E18-HF
KS092-090A-E18-HF
KS107-HF
KS107-026A-HF
KS107-060A-HF
KS107-075A-HF
KS107-090A-HF
KS107-125A-HF
KS106-HF
KS106-026A-HF
KS106-060A-HF
KS106-075A-HF
KS106-090A-HF
KS106-026A-E14-HF
KS106-060A-E14-HF
KS106-075A-E14-HF
KS106-090A-E14-HF
KS106-026A-E18-HF
KS106-060A-E18-HF
KS106-075A-E18-HF
KS106-090A-E18-HF
KS131-HF
KS131-026A-HF
KS131-060A-HF
KS131-075A-HF
KS131-090A-HF
KS135-HF
KS135-026A-HF
KS135-060A-HF
KS135-075A-HF
KS135-090A-HF
KS132-HF
KS132-026A-HF
KS132-060A-HF
KS132-075A-HF
KS132-090A-HF
KS141-HF
KS141-026A-HF
KS141-060A-HF
KS141-075A-HF
KS141-090A-HF
KS130-HF
KS130-026A-E14-HF
KS130-026A-HF
KS130-060A-E14-HF
KS130-060A-HF
KS130-075A-E14-HF
KS130-075A-HF
KS130-090A-E14-HF
KS130-090A-HF
KS130-026A-E18-HF
KS130-060A-E18-HF
KS130-075A-E18-HF
KS130-090A-E18-HF
KS157-HF
KS157-026A-HF
KS157-060A-HF
KS157-075A-HF
KS157-090A-HF
KS168-HF
KS168-026A-HF
KS168-060A-HF
KS168-075A-HF
KS168-090A-HF
KS158-HF
KS158-026A-HF
KS158-060A-HF
KS158-075A-HF
KS158-090A-HF
KS184-HF
KS184-026A-HF
KS184-060A-HF
KS184-075A-HF
KS184-090A-HF
KS185-HF
KS185-026A-HF
KS185-060A-HF
KS185-075A-HF
KS185-090A-HF
KS200-HF
KS200-026A-HF
KS200-060A-HF
KS200-075A-HF
KS200-090A-HF
KS226-HF
KS226-026A-HF
KS226-060A-HF
KS226-075A-HF
KS226-090A-HF
KS225-HF
KS225-026A-HF
KS225-060A-HF
KS225-075A-HF
KS225-090A-HF
KS250-HF
KS250-026A-E18-HF
KS250-060A-E18-HF
KS250-075A-E18-HF
KS250-090A-E18-HF
KS250-026A-E20-HF
KS250-060A-E20-HF
KS250-075A-E20-HF
KS250-090A-E20-HF
KS250-026A-HF
KS250-060A-HF
KS250-075A-HF
KS250-090A-HF
KS268-HF
KS268-026A-HF
KS268-060A-HF
KS268-075A-HF
KS268-090A-HF
KS300-HF
KS300-026A-HF
KS300-060A-HF
KS300-075A-HF
KS300-090A-HF
KS301-HF
KS301-026A-HF
KS301-060A-HF
KS301-075A-HF
KS301-090A-HF
KS290-HF
KS290-026A-HF
KS290-060A-HF
KS290-075A-HF
KS290-090A-HF
KS401-HF
KS401-026A-HF
KS401-060A-HF
KS401-075A-HF
KS401-090A-HF
KS400-HF
KS400-026A-HF
KS400-060A-HF
KS400-075A-HF
KS400-090A-HF
KS520-HF
KS520-026A-HF
KS520-060A-HF
KS521-HF
KS521-026A-HF
KS521-060A-HF
KNF050
KNF050-026A
KNF050-060A
KNF050-075A
KNF050-090A
KNF065
KNF065-026A
KNF065-060A
KNF065-075A
KNF065-090A
KNF068
KNF068-026A
KNF068-060A
KNF068-075A
KNF068-090A
KNF080
KNF080-026A
KNF080-060A
KNF080-075A
KNF080-090A
KNF107
KNF107-026A
KNF107-060A
KNF107-075A
KNF107-090A
KNF090
KNF090-026A
KNF090-060A
KNF090-060A-E14
KNF090-075A
KNF090-075A-E14
KNF090-090A
KNF090-090A-E14
KNF092
KNF092-026A
KNF092-060A
KNF092-060A-E14
KNF092-075A
KNF092-075A-E14
KNF092-090A
KNF092-090A-E14
KNF092-060A-E18
KNF092-075A-E18
KNF092-090A-E18
KNF106
KNF106-026A
KNF106-060A
KNF106-075A
KNF106-090A
KNF106-060A-E18
KNF106-075A-E18
KNF106-090A-E18
KNF131
KNF131-026A
KNF131-060A
KNF131-075A
KNF131-090A
KNF135
KNF135-026A
KNF135-060A
KNF135-075A
KNF135-090A
KNF130
KNF130-026A
KNF130-060A
KNF130-075A
KNF130-090A
KNF130-060A-E14
KNF130-075A-E14
KNF130-090A-E14
KNF130-060A-E18
KNF130-075A-E18
KNF130-090A-E18
KNF132
KNF132-026A
KNF132-060A
KNF132-075A
KNF132-090A
KNF141
KNF141-026A
KNF141-060A
KNF141-075A
KNF141-090A
KNF157-026A
KNF157
KNF157-060A
KNF157-075A
KNF157-090A
KNF168
KNF168-026A
KNF168-060A
KNF168-075A
KNF168-090A
KNF158
KNF158-026A
KNF158-060A
KNF158-075A
KNF158-090A
KNF184
KNF184-026A
KNF184-060A
KNF184-075A
KNF184-090A
KNF185
KNF185-026A
KNF185-060A
KNF185-075A
KNF185-090A
KNF200
KNF200-026A
KNF200-060A
KNF200-075A
KNF200-090A
KNF226
KNF226-026A
KNF226-060A
KNF226-075A
KNF226-090A
KNF225
KNF225-026A
KNF225-060A
KNF225-075A
KNF225-090A
KNF250
KNF250-060A-E18
KNF250-075A-E18
KNF250-090A-E18
KNF250-060A-E20
KNF250-075A-E20
KNF250-090A-E20
KNF250-026A
KNF250-060A
KNF250-075A
KNF250-090A
KNF268
KNF268-026A
KNF268-060A
KNF268-075A
KNF268-090A
KNF300
KNF300-026A
KNF300-060A
KNF300-075A
KNF300-090A
KNF301
KNF301-026A
KNF301-060A
KNF301-075A
KNF301-090A
KNF290
KNF290-026A
KNF290-060A
KNF290-075A
KNF290-090A
KNF401
KNF401-026A
KNF401-060A
KNF401-075A
KNF401-090A
KNF400
KNF400-026A
KNF400-060A
KNF400-075A
KNF400-090A
KNF520
KNF520-060A
KNF521
KNF521-060A
KT50
KT50-2
KT50-8
KT50-26
KT50-40
KT50-52
KT50-8B
KT50-26B
KT50-40B
KT50-52B
KT50-26D
KT50-40D
KT50-52D
KT51
KT51-8C
KT51-26C
KT51-40C
KT51-52C
KT57
KT57-52
KT57-52A
KT60
KT60-2
KT60-8
KT60-40
KT60-52
KT60-26D
KT60-52D
KT68
KT68-2
KT68-8
KT68-26
KT68-40
KT68-52
KT68-2A
KT68-8A
KT68-26A
KT68-40A
KT68-52A
KT68-2D
KT68-26D
KT68-40D
KT68-52D
KT72
KT72-2
KT72-8
KT72-26
KT72-40
KT72-52
KT80
KT80-2
KT80-8
KT80-26
KT80-40
KT80-52
KT80-8B
KT80-26B
KT80-40B
KT80-52B
KT80-26D
KT80-40D
KT80-52D
KT90
KT90-8
KT90-26
KT90-40
KT90-52
KT94
KT94-2
KT94-8
KT94-26
KT94-40
KT94-52
KT106
KT106-2
KT106-8
KT106-26
KT106-40
KT106-52
KT106-26A
KT106-40A
KT106-52A
KT106-26B
KT106-40B
KT106-52B
KT124
KT124-26
KT130
KT130-2
KT130-8
KT130-26
KT130-40
KT130-52
KT130-26A
KT131
KT131-8
KT131-40
KT131-52
KT132
KT132-26
KT132-40
KT132-52
KT141
KT141-8
KT141-26
KT141-40
KT141-52
KT150
KT150-26
KT150-40
KT150-52
KT150-26A
KT157
KT157-2
KT157-8
KT157-26
KT157-40
KT157-52
KT175
KT175-8
KT175-26
KT175-40
KT175-52
KT184
KT184-2
KT184-8
KT184-40
KT184-52
KT200
KT200-2
KT200-8
KT200-40
KT200-52
KT200-2B
KT200-8B
KT200-40B
KT200-52B
KT201
KT201-8
KT201-26
KT201-40
KT201-52
KT224
KT224-26
KT224-52C
KT225
KT225-2
KT225-8
KT225-40
KT225-52
KT225-2B
KT225-26B
KT225-52B
KT249
KT249-26
KT249-52
KT250
KT250-8
KT250-40
KT250-52
KT260
KT260-26
KT260-40
KT260-52
KT300
KT300-2
KT300-8
KT300-40
KT300-52
KT300-2D
KT300-40D
KT300-52D
KT350
KT350-26
KT350-40
KT350-52
KT400
KT400-2
KT400-8
KT400-40
KT400-52
KT400-26B
KT400-2D
KT400-26D
KT400-40D
KT520
KT520-2
KT520-8
KT520-26
KT520-28
KT520-40
KT520-52
KT520-40D
KT650
KT650-2
KT650-8
KT650-26
KT650-40
KT650-52

product information

+

Product

hint
Please fill in the fields correctly

Subscription succeeded

Contact Us

  • 资料名称
