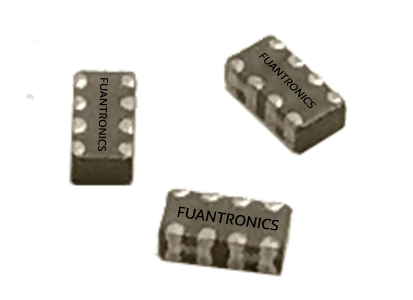

SMD common mode inductor
Series | Inductance | DCR | Load current | Dimension (mm) | Spec. | Sample Application |
FAS06404KTG | 370-407μH | 0.419-0.335Ω | 200mA | 13.20*9.00*7.62 | - | |
FASB0404SS | - | 100Ω | 3000mA | 3.8*4.9*5 | - | |
FASB0404SS-334R | - | 100Ω | 3000mA | 3.8*4.9*5 | ||
FASB0604 | - | 60-120Ω | 650-900mA | 5.85*6.25*3.6 | - | |
FASB0604-015 | - | 60Ω | 900mA | 5.85*6.25*3.6 | ||
FASB0604-025 | - | 65Ω | 800mA | 5.85*6.25*3.6 | ||
FASB0604-035 | - | 80Ω | 700mA | 5.85*6.25*3.6 | ||
FASB0604-045 | - | 120Ω | 650mA | 5.85*6.25*3.6 | ||
FASFB2012 | - | 0.42-0.80mΩ | 200mA | 2.00*1.20*1.20 | - | |
FASFB2012-2011M01 | - | 0.80Ω | 200mA | 2.00*1.20*1.20 | ||
FASFB2012-7511M01 | - | 0.77Ω | 200mA | 2.00*1.20*1.20 | ||
FASFB2012-7511M02 | - | 0.40Ω | 300mA | 2.00*1.20*1.20 | ||
FASFB2012-7511G01 | - | 0.42Ω | 290mA | 2.00*1.20*1.20 | ||
FASFB2012-7511G02 | - | 0.42Ω | 290mA | 2.00*1.20*1.20 | ||
FASFB2012-7511G03 | - | 0.42Ω | 290mA | 2.00*1.20*1.20 | ||
FASCM1310 | - | 50-91Ω | 2000-4500mA | 13.0*12.5*8.50 | - | |
FASCM1310-364R | - | 50Ω | 3500mA | 13.0*12.5*8.50 | ||
FASCM1310-400R | - | 50Ω | 2500mA | 13.0*12.5*8.50 | ||
FASCM1310-412R | - | 50Ω | 4500mA | 13.0*12.5*8.50 | ||
FASCM1310-1K5R | - | 80Ω | 2500mA | 13.0*12.5*8.50 | ||
FASCM1310-1K6R | - | 91Ω | 2000mA | 13.0*12.5*8.50 | ||
FASCM0904 | - | 120-700Ω | 400-1000mA | 9.00*5.50*4.70 | - | |
FASCM0904-110 | - | 120Ω | 1000mA | 9.00*5.50*4.70 | ||
FASCM0904-250 | - | 120Ω | 900mA | 9.00*5.50*4.70 | ||
FASCM0904-10 | - | 150Ω | 800mA | 9.00*5.50*4.70 | ||
FASCM0904-101 | - | 100Ω | 700mA | 9.00*5.50*4.70 | ||
FASCM0904-471 | - | 280Ω | 700mA | 9.00*5.50*4.70 | ||
FASCM0904-102 | - | 300Ω | 700mA | 9.00*5.50*4.70 | ||
FASCM0904-222 | - | 400Ω | 500mA | 9.00*5.50*4.70 | ||
FASCM0904-472 | - | 700Ω | 400mA | 9.00*5.50*4.70 | ||
FASCM1006C | - | 25-630Ω | 250-1400mA | 10.0*8.70*6.50 | - | |
FASCM1006C-121 | - | 25Ω | 1400mA | 10.0*8.70*6.50 | ||
FASCM1006C-251 | - | 30Ω | 1250mA | 10.0*8.70*6.50 | ||
FASCM1006C-501 | - | 60Ω | 900mA | 10.0*8.70*6.50 | ||
FASCM1006C-102 | - | 180Ω | 500mA | 10.0*8.70*6.50 | ||
FASCM1006C-202 | - | 250Ω | 450mA | 10.0*8.70*6.50 | ||
FASCM1006C-302 | - | 300Ω | 400mA | 10.0*8.70*6.50 | ||
FASCM1006C-402 | - | 580Ω | 300mA | 10.0*8.70*6.50 | ||
FASCM1006C-502 | - | 630Ω | 250mA | 10.0*8.70*6.50 | ||
FASCM0805 | - | 25-630Ω | 250-1400mA | 8.8*8.5*6.0 | - | |
FASCM0805-121 | - | 25Ω | 1400mA | 8.8*8.5*6.0 | ||
FASCM0805-251 | - | 30Ω | 1250mA | 8.8*8.5*6.0 | ||
FASCM0805-501 | - | 60Ω | 900mA | 8.8*8.5*6.0 | ||
FASCM0805-102 | - | 180Ω | 500mA | 8.8*8.5*6.0 | ||
FASCM0805-202 | - | 250Ω | 450mA | 8.8*8.5*6.0 | ||
FASCM0805-302 | - | 300Ω | 400mA | 8.8*8.5*6.0 | ||
FASCM0805-402 | - | 580Ω | 300mA | 8.8*8.5*6.0 | ||
FASCM0805-502 | - | 630Ω | 250mA | 8.8*8.5*6.0 | ||
FASCMT0905 | - | 7.5-60Ω | 1400-5000mA | 9.80*8.60*5.30 | - | |
FASCMT0905-501 | - | 7.5Ω | 5000mA | 9.80*8.60*5.30 | ||
FASCMT0905-801 | - | 15Ω | 3500mA | 9.80*8.60*5.30 | ||
FASCMT0905-102 | - | 35Ω | 2500mA | 9.80*8.60*5.30 | ||
FASCMT0905-152 | - | 50Ω | 2000mA | 9.80*8.60*5.30 | ||
FASCMT0905-222 | - | 60Ω | 1400mA | 9.80*8.60*5.30 | ||
FASF4828 | - | 0.1-0.4Ω | 1000-3000mA | 4.80*2.80*2.2 | - | |
FASF4828-600 | - | 0.10Ω | 3000mA | 4.80*2.80*2.2 | ||
FASF4828-121 | - | 0.20Ω | 2000mA | 4.80*2.80*2.2 | ||
FASF4828-221 | - | 0.20Ω | 2000mA | 4.80*2.80*2.2 | ||
FASF4828-601 | - | 0.20Ω | 2000mA | 4.80*2.80*2.2 | ||
FASF4828-701 | - | 0.15Ω | 2000mA | 4.80*2.80*2.2 | ||
FASF4828-102 | - | 0.40Ω | 1000mA | 4.80*2.80*2.2 | ||
FASF4828-122 | - | 0.40Ω | 1000mA | 4.80*2.80*2.2 | ||
FASF4828-142 | - | 0.40Ω | 1000mA | 4.80*2.80*2.2 | ||
FASF7060 | - | 2-75Ω | 900-15000mA | 7.00*7.50*6.0 | - | |
FASF7060-400 | - | 5Ω | 15000mA | 7.00*7.50*6.0 | ||
FASF7060-101 | - | 10Ω | 9000mA | 7.00*7.50*6.0 | ||
FASF7060-301 | - | 10Ω | 5000mA | 7.00*7.50*6.0 | ||
FASF7060-501 | - | 10Ω | 5000mA | 7.00*7.50*6.0 | ||
FASF7060-701 | - | 15Ω | 4000mA | 7.00*7.50*6.0 | ||
FASF7060-102 | - | 17Ω | 3000mA | 7.00*7.50*6.0 | ||
FASF7060-132 | - | 21Ω | 2500mA | 7.00*7.50*6.0 | ||
FASF7060-272 | - | 63Ω | 1000mA | 7.00*7.50*6.0 | ||
FASF7060-302 | - | 75Ω | 900mA | 7.00*7.50*6.0 | ||
FASF9070 | - | 6-90Ω | 1900-6000mA | 9.00*9.50*7.0 | - | |
FASF9070-301 | - | 6Ω | 6000mA | 9.00*9.50*7.0 | ||
FASF9070-501 | - | 8Ω | 5500mA | 9.00*9.50*7.0 | ||
FASF9070-701 | - | 10Ω | 5000mA | 9.00*9.50*7.0 | ||
FASF9070-102 | - | 13Ω | 4000mA | 9.00*9.50*7.0 | ||
FASF9070-222 | - | 60Ω | 2500mA | 9.00*9.50*7.0 | ||
FASF9070-272 | - | 86Ω | 2000mA | 9.00*9.50*7.0 | ||
FASF9070-302 | - | 90Ω | 1900mA | 9.00*9.50*7.0 | ||
FASF4532 | - | 0.05-0.12Ω | 2000-4000mA | 4.50*3.20*2.80 | - | |
FASF4532-900 | - | 0.050Ω | 4000mA | 4.50*3.20*2.80 | ||
FASF4532-231 | - | 0.051Ω | 3500mA | 4.50*3.20*2.80 | ||
FASF4532-421 | - | 0.052Ω | 3200mA | 4.50*3.20*2.80 | ||
FASF4532-601 | - | 0.065Ω | 2500mA | 4.50*3.20*2.80 | ||
FASF4532-801 | - | 0.100Ω | 2300mA | 4.50*3.20*2.80 | ||
FASF4532-901 | - | 0.100Ω | 2200mA | 4.50*3.20*2.80 | ||
FASF4532-102 | - | 0.110Ω | 2100mA | 4.50*3.20*2.80 | ||
FASF4532-142 | - | 0.120Ω | 2000mA | 4.50*3.20*2.80 | ||
FASF453228L | - | 0.6-1.0Ω | 200-250mA | 4.80*3.20*2.80 | - | |
FASF453228L-110 | - | 0.6Ω | 250mA | 4.80*3.20*2.80 | ||
FASF453228L-220 | - | 1.0Ω | 200mA | 4.80*3.20*2.80 | ||
FASF453228L-510 | - | 1.0Ω | 200mA | 4.80*3.20*2.80 | ||
FASF4532A | - | 0.60-2.00Ω | 150-250mA | 4.50*3.20*2.80 | - | |
FASF4532A-110 | - | 0.60Ω | 250mA | 4.50*3.20*2.80 | ||
FASF4532A-220 | - | 1.0Ω | 200mA | 4.50*3.20*2.80 | ||
FASF4532A-510 | - | 1.0Ω | 200mA | 4.50*3.20*2.80 | ||
FASF4532A-101 | - | 2.0Ω | 150mA | 4.50*3.20*2.80 | ||
FASF4520 | - | 35-81Ω | 1.9-3.2mA | 4.7*4.5*2.0 | - | |
FASF4520-900 | - | 35Ω | 3.2mA | 4.7*4.5*2.0 | ||
FASF4520-151 | - | 38Ω | 3.1mA | 4.7*4.5*2.0 | ||
FASF4520-231 | - | 39Ω | 3.0mA | 4.7*4.5*2.0 | ||
FASF4520-301 | - | 39Ω | 3.0mA | 4.7*4.5*2.0 | ||
FASF4520-401 | - | 50Ω | 2.5mA | 4.7*4.5*2.0 | ||
FASF4520-501 | - | 55Ω | 2.4mA | 4.7*4.5*2.0 | ||
FASF4520-701 | - | 59Ω | 2.2mA | 4.7*4.5*2.0 | ||
FASF4520-901 | - | 68Ω | 2.1mA | 4.7*4.5*2.0 | ||
FASF4520-102 | - | 68Ω | 2.1mA | 4.7*4.5*2.0 | ||
FASF4520-122 | - | 74Ω | 2.0mA | 4.7*4.5*2.0 | ||
FASF4520-142 | - | 81Ω | 1.9mA | 4.7*4.5*2.0 | ||
FASF453226L | - | 2Ω | 250mA | 4.50*3.20*2.60 | - | |
FASF453226L-101 | - | 2.0Ω | 250mA | 4.50*3.20*2.60 | ||
FASF3216 | - | 0.20-1.20Ω | 200-400mA | 3.20*1.60*2.00 | - | |
FASF3216-330 | - | 0.2Ω | 400mA | 3.20*1.60*2.00 | ||
FASF3216-500 | - | 0.25Ω | 400mA | 3.20*1.60*2.00 | ||
FASF3216-900 | - | 0.3Ω | 400mA | 3.20*1.60*2.00 | ||
FASF3216-121 | - | 0.3Ω | 400mA | 3.20*1.60*2.00 | ||
FASF3216-161 | - | 0.40Ω | 350mA | 3.20*1.60*2.00 | ||
FASF3216-221 | - | 0.45Ω | 300mA | 3.20*1.60*2.00 | ||
FASF3216-261 | - | 0.50Ω | 300mA | 3.20*1.60*2.00 | ||
FASF3216-501 | - | 0.80Ω | 260mA | 3.20*1.60*2.00 | ||
FASF3216-601 | - | 0.80Ω | 260mA | 3.20*1.60*2.00 | ||
FASF3216-102 | - | 1.00Ω | 250mA | 3.20*1.60*2.00 | ||
FASF3216-222 | - | 1.20Ω | 200mA | 3.20*1.60*2.00 | ||
FASF2012LP | - | 0.25-0.50Ω | 250-500mA | 2.00*1.20*1.20 | - | |
FASF2012LP-120 | - | 0.25Ω | 500mA | 2.00*1.20*1.20 | ||
FASF2012LP-90 | - | 0.35Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012LP-121 | - | 0.40Ω | 500mA | 2.00*1.20*1.20 | ||
FASF2012LP-181 | - | 0.50Ω | 250mA | 2.00*1.20*1.20 | ||
FASF2012 | - | 0.2-0.7Ω | 280-450mA | 2.00*1.20*1.20 | - | |
FASF2012-120 | - | 0.2Ω | 450mA | 2.00*1.20*1.20 | ||
FASF2012-240 | - | 0.25Ω | 420mA | 2.00*1.20*1.20 | ||
FASF2012-320 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012-500 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012-670 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012-750 | - | 0.7Ω | 280mA | 2.00*1.20*1.20 | ||
FASF2012-900 | - | 0.3Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012-121 | - | 0.3Ω | 370mA | 2.00*1.20*1.20 | ||
FASF2012-141 | - | 0.32Ω | 360mA | 2.00*1.20*1.20 | ||
FASF2012-161 | - | 0.35Ω | 350mA | 2.00*1.20*1.20 | ||
FASF2012-181 | - | 0.35Ω | 330mA | 2.00*1.20*1.20 | ||
FASF2012-201 | - | 0.40Ω | 300mA | 2.00*1.20*1.20 | ||
FASF2012-221 | - | 0.40Ω | 300mA | 2.00*1.20*1.20 | ||
FASF2012-261 | - | 0.40Ω | 300mA | 2.00*1.20*1.20 | ||
FASF2012-371 | - | 0.45Ω | 280mA | 2.00*1.20*1.20 | ||
FASF2012HDMI | - | 0.25-0.30Ω | 370-400mA | 2.00*1.20*1.20 | - | |
FASF2012HDMI-400 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012HDMI-670 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012HDMI-900 | - | 0.30Ω | 400mA | 2.00*1.20*1.20 | ||
FASF2012HDMI-121 | - | 0.30Ω | 370mA | 2.00*1.20*1.20 | ||
FASF1513 | - | 5.0-7.0Ω | 10000-13000mA | 15.0*15.5*13.0 | - | |
FASF1513-301 | - | 5.0Ω | 13000mA | 15.0*15.5*13.0 | ||
FASF1513-551 | - | 5.5Ω | 10000mA | 15.0*15.5*13.0 | ||
FASF1513-701 | - | 7.0Ω | 10000mA | 15.0*15.5*13.0 | ||
FASF1608LP | - | 0.3-0.8Ω | 200-500mA | 1.20*1.00*0.90 | - | |
FASF1608LP-100 | - | 0.3Ω | 500mA | 1.20*1.00*0.90 | ||
FASF1608LP-200 | - | 0.4Ω | 400mA | 1.20*1.00*0.90 | ||
FASF1608LP-300 | - | 0.45Ω | 350mA | 1.20*1.00*0.90 | ||
FASF1608LP-450 | - | 0.5Ω | 300mA | 1.20*1.00*0.90 | ||
FASF1608LP-600 | - | 0.5Ω | 300mA | 1.20*1.00*0.90 | ||
FASF1608LP-670 | - | 0.5Ω | 300mA | 1.20*1.00*0.90 | ||
FASF1608LP-900 | - | 0.55Ω | 250mA | 1.20*1.00*0.90 | ||
FASF1608LP-121 | - | 0.8Ω | 200mA | 1.20*1.00*0.90 | ||
FASF1608LP-161 | - | 0.8Ω | 200mA | 1.20*1.00*0.90 | ||
FASF1211 | - | 4.0-50.0Ω | 1500-10000mA | 12.0*12.5*10.8 | - | |
FASF1211-800 | - | 4.0Ω | 10000mA | 12.0*12.5*10.8 | ||
FASF1211-701 | - | 6.0Ω | 8000mA | 12.0*12.5*10.8 | ||
FASF1211-102 | - | 14.0Ω | 6000mA | 12.0*12.5*10.8 | ||
FASF1211-222 | - | 35.0Ω | 1800mA | 12.0*12.5*10.8 | ||
FASF1211-272 | - | 50.0Ω | 1500mA | 12.0*12.5*10.8 | ||
FASF1210HS | - | 0.2-0.3Ω | 400-450mA | 2.00*1.20*1.20 | - | |
FASF1210HS-250 | - | 0.25Ω | 420mA | 2.00*1.20*1.20 | ||
FASF1210HS-600 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF1210HS-900 | - | 0.3Ω | 400mA | 2.00*1.20*1.20 | ||
FASF1212HS-120 | - | 0.2Ω | 450mA | 2.00*1.20*1.20 | ||
FASF1212HS-240 | - | 0.25Ω | 420mA | 2.00*1.20*1.20 | ||
FASF1212HS-320 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF1212HS-670 | - | 0.25Ω | 400mA | 2.00*1.20*1.20 | ||
FASF1212HS-900 | - | 0.3Ω | 400mA | 2.00*1.20*1.20 | ||
FASF0905 | 10-6500uH | 0.08-1.05Ω | 0.3-1.6A | 9.20*6.00*5.00 | - | |
FASF0905-100YS | 10.0uH | 0.08Ω | 1.6A | 9.20*6.00*5.00 | ||
FASF0905-102YS | 1000uH | 0.31Ω | 0.8A | 9.20*6.00*5.00 | ||
FASF0905-202YS | 2000uH | 0.42Ω | 0.6A | 9.20*6.00*5.00 | ||
FASF0905-250YS | 25.0uH | 0.16Ω | 1.0A | 9.20*6.00*5.00 | ||
FASF0905-251YS | 250.0uH | 0.13Ω | 1.2A | 9.20*6.00*5.00 | ||
FASF0905-400YS | 40.0uH | 0.25Ω | 0.9A | 9.20*6.00*5.00 | ||
FASF0905-471YS | 470.0uH | 0.14Ω | 1.1A | 9.20*6.00*5.00 | ||
FASF0905-472YS | 4700uH | 0.90Ω | 0.4A | 9.20*6.00*5.00 | ||
FASF0905-500YS | 50.0uH | 0.32Ω | 0.8A | 9.20*6.00*5.00 | ||
FASF0905-501YS | 500.0uH | 0.15Ω | 1.0A | 9.20*6.00*5.00 | ||
FASF0905-652YS | 6500uH | 1.05Ω | 0.3A | 9.20*6.00*5.00 | ||
FASQD75T | - | 20-45Ω | 1000-2000mA | 7.5*6.0*3.2 | - | |
FASQD75T-2T | - | 20Ω | 2000mA | 7.5*6.0*3.2 | ||
FASQD75T-3T | - | 25Ω | 1500mA | 7.5*6.0*3.2 | ||
FASQD75T-4T | - | 45Ω | 1000mA | 7.5*6.0*3.2 | ||
FASQD57T | - | 50-70Ω | 500-1000mA | 5.7*4.6*1.7 | - | |
FASQD57T-1T | - | 50Ω | 1000mA | 5.7*4.6*1.7 | ||
FASQD57T-2T | - | 70Ω | 500mA | 5.7*4.6*1.7 | ||
FASQD105T | - | 50-55Ω | 3000-4000mA | 10.0*8.0*5.0 | - | |
FASQD105T-3T | - | 50Ω | 4000mA | 10.0*8.0*5.0 | ||
FASQD105T-4T | - | 55Ω | 3000mA | 10.0*8.0*5.0 | ||
FASQD125T | - | 15-25Ω | 5000-6000mA | 12.0*10.0*6.0 | - | |
FASQD125T-2T | - | 15Ω | 6000mA | 12.0*10.0*6.0 | ||
FASQD125T-3T | - | 20Ω | 5500mA | 12.0*10.0*6.0 | ||
FASQD125T-4T | - | 25Ω | 5000mA | 12.0*10.0*6.0 | ||
FASQD50T | - | 50-55Ω | 3000-4000mA | 5.0*8.5*5.0 | - | |
FASQD50T-3T | - | 50Ω | 3000mA | 5.0*8.5*5.0 | ||
FASQD50T-4T | - | 55Ω | 4000mA | 5.0*8.5*5.0 | ||
FASRF5025 | - | 9-40Ω | 1500-6500mA | 4.8*5.0*2.50 | - | |
FASRF5025-101 | - | 9Ω | 6500mA | 4.8*5.0*2.50 | ||
FASRF5025-251 | - | 14Ω | 5000mA | 4.8*5.0*2.50 | ||
FASRF5025-351 | - | 28Ω | 4000mA | 4.8*5.0*2.50 | ||
FASRF5025-501 | - | 19Ω | 4000mA | 4.8*5.0*2.50 | ||
FASRF5025-102 | - | 24Ω | 2000mA | 4.8*5.0*2.50 | ||
FASRF5025-142 | - | 40Ω | 1500mA | 4.8*5.0*2.50 | ||
FASRF0504 | - | 20-300 | 200-5000 | 4.8*5.0*5.20 | - | - |
FASRF0504-191Y5R0 | - | 20 | 5000 | 4.8*5.0*5.20 | ||
FASRF0504-302Y0R5 | - | 200 | 500 | 4.8*5.0*5.20 | ||
FASRF0504-351Y2R0 | - | 40 | 2000 | 4.8*5.0*5.20 | ||
FASRF0504-402Y0R2 | - | 300 | 200 | 4.8*5.0*5.20 | ||
FASRF0504-102Y1R5 | - | 60 | 1500 | 4.8*5.0*5.20 | ||
FASRF0504-152Y1R0 | - | 100 | 1000 | 4.8*5.0*5.20 | ||
FASCCM2012HS | - | 1.0-1.2Ω | 100-200mA | 2.00*1.20*1.00 | - | |
FASCCM2012HSH-670A | - | 1.0Ω | 200mA | 2.00*1.25*1.00 | ||
FASCCM2012HSH-900A | - | 1.0Ω | 200mA | 2.00*1.25*1.00 | ||
FASCCM2012HSD-500A | - | 1.0Ω | 100mA | 2.00*1.25*1.00 | ||
FASCCM2012HSD-900A | - | 1.0Ω | 200mA | 2.00*1.25*1.00 | ||
FASCCM2012HSD-121A | - | 1.2Ω | 100mA | 2.00*1.25*1.00 | ||
FASCCM2012HSS-500A | - | 1.0Ω | 100mA | 2.00*1.25*1.00 | ||
FASCCM3216 | - | 0.5Ω | 500mA | 3.20*1.60*1.00 | - | |
FASCCM3216-900 | - | 0.5Ω | 500mA | 3.20*1.60*1.00 | ||
FASCCM3216-121 | - | 0.5Ω | 500mA | 3.20*1.60*1.00 | ||
FASCCM2012 | - | 0.4-0.5Ω | 300-400mA | 2.00*1.25*1.00 | - | |
FASCCM2012-670 | - | 0.4Ω | 400mA | 2.00*1.20*1.00 | ||
FASCCM2012-900 | - | 0.4Ω | 400mA | 2.00*1.20*1.00 | ||
FASCCM2012-121 | - | 0.4Ω | 400mA | 2.00*1.20*1.00 | ||
FASCCM2012-161 | - | 0.5Ω | 400mA | 2.00*1.20*1.00 | ||
FASCCM2012-181 | - | 0.5Ω | 400mA | 2.00*1.20*1.00 | ||
FASCCM2012-221 | - | 0.5Ω | 300mA | 2.00*1.20*1.00 | ||
FASCCM0608 | - | 2.5Ω | 130mA | 0.65*0.85*0.45 | - | |
FASCCM0608-650 | - | 2.5Ω | 130mA | 0.65*0.85*0.45 | ||
FASCCM0608-900 | - | 2.5Ω | 130mA | 0.65*0.85*0.45 | ||
FASCCM1210CE | - | 1.75-2.7Ω | 130-160mA | 1.25*1.00*0.50 | - | |
FASCCM1210CE-900 | - | 1.75Ω | 160mA | 1.25*1.00*0.50 | ||
FASCCM1210CE-121 | - | 2.2Ω | 140mA | 1.25*1.00*0.50 | ||
FASCCM1210CE-201 | - | 2.7Ω | 130mA | 1.25*1.00*0.50 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
Series |
