KSF092-026A-E18

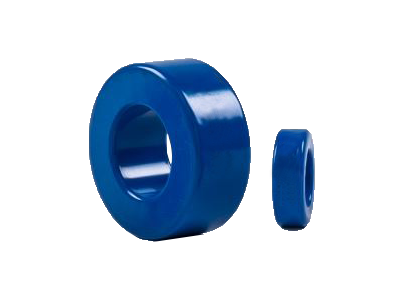

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters
Alloy core-Metal soft magnetic core
- 型号：KSF092-026A-E18
- Coating ID (mm): 24.300
- Coating OD (mm): 13.770
- Coating HT (mm): 19.000
- Without coating HT (mm): 23.60
- Without coating ID (mm): 14.40
- Without coating OD (mm): 18.00
- Ae(cm2): 0.786
- le(cm): 5.88
- V(cm3): 4.616
- W(cm2): 1.49
- Perm.（μ）: 26
- Al(nH/N2): 45
