KS090-026A-E14-HF

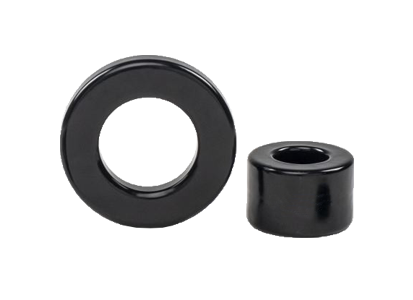

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters
Alloy core-Metal soft magnetic core
- 型号:KS090-026A-E14-HF
- Coating ID (mm): 23.62
- Coating OD (mm): 13.39
- Coating HT (mm): 15.00
- Without coating HT (mm): 22.90
- Without coating ID (mm): 15.00
- Without coating OD (mm): 14.00
- Ae(cm2): 0.608
- le(cm): 5.67
- V(cm3): 3.454
- W(cm2): 1.41
- Perm.(μ): 26
- Al(nH/N2): 35
