Plastic Housing External Cost-effective Type

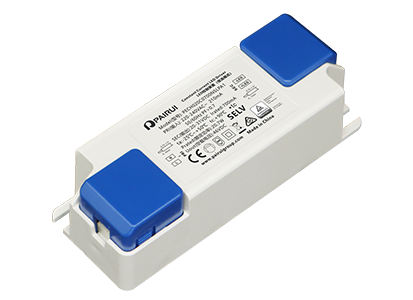

PECH-A1

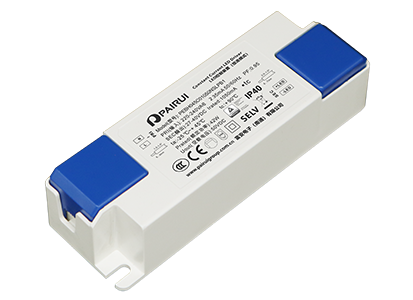

PEBH-B1
Click to expand the criteria search box

  • Product number

    • {/php}

  • Rated power（W）

  • Output current（mA）

  • Output voltage（V）

  • PF

  • Ripple

Plastic Housing External Cost-effective Type Filter Models: 13 in total, please see the table below.

Series Rated power（W） Input voltage（V） Output current（mA） Output voltage（V） Efficiency Certificate Spec. PF Sample Application
PECH003-A1
3 220-240 120-700 15-26 72% CE CB TUV SAA
0.7
-
PECH003C0120NSLPA1
3 200-240 120 15-26 72% CE CB TUV SAA
0.7
PECH003C0150NSLPA1
3 200-240 150 15-26 72% CE CB TUV SAA
0.7
PECH003C0200NSLPA1
3 200-240 200 9-16 72% CE CB TUV SAA
0.7
PECH003C0300NSLPA1
3 200-240 300 5-13 72% CE CB TUV SAA
0.7
PECH003C0350NSLPA1
3 200-240 350 4-10 72% CE CB TUV SAA
0.7
PECH003C0500NSLPA1
3 200-240 500 2-6 72% CE CB TUV SAA
0.7
PECH003C0550NSLPA1
3 200-240 550 2-6 72% CE CB TUV SAA
0.7
PECH003C0600NSLPA1
3 200-240 600 2-6 70% CE CB TUV SAA
0.7
PECH003C0700NSLPA1
3 200-240 700 2-6 70% CE CB TUV SAA
0.7
PECH006-A1
6 220-240 120-700 4-50 75% CE CB TUV SAA
0.7
-
PECH006C0120NSLPA1
6 200-240 120 30-50 75% CE CB TUV SAA
0.7
PECH006C0150NSLPA1
6 200-240 150 24-45 75% CE CB TUV SAA
0.7
PECH006C0180NSLPA1
6 200-240 180 22-35 75% CE CB TUV SAA
0.7
PECH006C0200NSLPA1
6 200-240 200 18-35 75% CE CB TUV SAA
0.7
PECH006C0300NSLPA1
6 200-240 300 12-22 75% CE CB TUV SAA
0.7
PECH006C0350NSLPA1
6 200-240 350 9-18 75% CE CB TUV SAA
0.7
PECH006C0400NSLPA1
6 200-240 400 8-15 75% CE CB TUV SAA
0.7
PECH006C0500NSLPA1
6 200-240 500 6-13 72% CE CB TUV SAA
0.7
PECH006C0550NSLPA1
6 200-240 550 6-13 72% CE CB TUV SAA
0.7
PECH006C0600NSLPA1
6 200-240 600 4-10 72% CE CB TUV SAA
0.7
PECH006C0700NSLPA1
6 200-240 700 4-10 72% CE CB TUV SAA
0.7
PECH009-A1
9 220-240 150-700 8-60 72% CE CB TUV SAA
0.7
-
PECH009C0150NSLPA1
9 200-240 150 43-60 72% CE CB TUV SAA
0.7
PECH009C0180NSLPA1
9 200-240 180 30-45 72% CE CB TUV SAA
0.7
PECH009C0200NSLPA1
9 200-240 200 30-45 72% CE CB TUV SAA
0.7
PECH009C0250NSLPA1
9 200-240 250 20-36 72% CE CB TUV SAA
0.7
PECH009C0300NSLPA1
9 200-240 300 20-32 72% CE CB TUV SAA
0.7
PECH009C0350NSLPA1
9 200-240 350 15-27 72% CE CB TUV SAA
0.7
PECH009C0400NSLPA1
9 200-240 400 12-24 72% CE CB TUV SAA
0.7
PECH009C0500NSLPA1
9 200-240 500 12-19 72% CE CB TUV SAA
0.7
PECH009C0600NSLPA1
9 200-240 600 8-15 72% CE CB TUV SAA
0.7
PECH009C0700NSLPA1
9 200-240 700 8-13 72% CE CB TUV SAA
0.7
PECH012-A1
12 220-240 200-700 10-60 72% CE CB TUV SAA
0.7
-
PECH012C0200NSLPA1
12 200-240 200 12-60 72% CE CB TUV SAA
0.7
PECH012C0250NSLPA1
12 200-240 250 30-48 72% CE CB TUV SAA
0.7
PECH012C0300NSLPA1
12 200-240 300 30-40 72% CE CB TUV SAA
0.7
PECH012C0350NSLPA1
12 200-240 350 24-38 72% CE CB TUV SAA
0.7
PECH012C0400NSLPA1
12 200-240 400 20-31 72% CE CB TUV SAA
0.7
PECH012C0500NSLPA1
12 200-240 500 16-25 72% CE CB TUV SAA
0.7
PECH012C0600NSLPA1
12 200-240 600 10-24 72% CE CB TUV SAA
0.7
PECH012C0700NSLPA1
12 200-240 700 10-20 72% CE CB TUV SAA
0.7
PECH015-A1
15 200-240 300-500 20-52 72% CE CB TUV SAA
0.7
-
PECH015C0300NSLPA1
15 200-240 300 40-52 72% CE CB TUV SAA
0.7
PECH015C0350NSLPA1
15 200-240 350 30-48 72% CE CB TUV SAA
0.7
PECH015C0400NSLPA1
15 200-240 400 30-40 72% CE CB TUV SAA
0.7
PECH015C0450NSLPA1
15 200-240 450 24-38 72% CE CB TUV SAA
0.7
PECH015C0500NSLPA1
15 200-240 500 20-31 72% CE CB TUV SAA
0.7
PECH020-A1
20 220-240 300-700 20-70 72% CE CB TUV SAA
0.7
-
PECH020C0300NSLPA1
20 200-240 300 48-70 72% CE CB TUV SAA
0.7
PECH020C0350NSLPA1
20 200-240 350 40-62 72% CE CB TUV SAA
0.7
PECH020C0400NSLPA1
20 200-240 400 36-55 72% CE CB TUV SAA
0.7
PECH020C0450NSLPA1
20 200-240 450 32-48 72% CE CB TUV SAA
0.7
PECH020C0500NSLPA1
20 200-240 500 29-43 72% CE CB TUV SAA
0.7
PECH020C0550NSLPA1
20 200-240 550 26-39 72% CE CB TUV SAA
0.7
PECH020C0600NSLPA1
20 200-240 600 24-36 72% CE CB TUV SAA
0.7
PECH020C0650NSLPA1
20 200-240 650 20-31 72% CE CB TUV SAA
0.7
PECH020C0700NSLPA1
20 200-240 700 20-31 72% CE CB TUV SAA
0.7
PEBH015-B1
15 220-240 300-700 15-52 85% CE CB TUV CCC
0.9
-
PEBH015C0300NSLPB1
15 220-240 300 32-52 85% CE CB TUV CCC
0.9
PEBH015C0350NSLPB1
15 220-240 350 30-44 85% CE CB TUV CCC
0.9
PEBH015C0400NSLPB1
15 220-240 400 26-40 85% CE CB TUV CCC
0.9
PEBH015C0450NSLPB1
15 220-240 450 24-36 85% CE CB TUV CCC
0.9
PEBH015C0500NSLPB1
15 220-240 500 21-32 85% CE CB TUV CCC
0.9
PEBH015C0550NSLPB1
15 220-240 550 19-29 85% CE CB TUV CCC
0.9
PEBH015C0600NSLPB1
15 220-240 600 17-26 85% CE CB TUV CCC
0.9
PEBH015C0650NSLPB1
15 220-240 650 15-22 85% CE CB TUV CCC
0.9
PEBH015C07000NSLPB1
15 220-240 700 15-23 85% CE CB TUV CCC
0.9
PEBH020-B1
20 220-240 300-700 20-70 85% CE CB TUV CCC
0.9
-
PEBH020C0300NSLPB1
20 220-240 300 48-70 85% CE CB TUV CCC
0.9
PEBH020C0350NSLPB1
20 220-240 350 40-62 85% CE CB TUV CCC
0.9
PEBH020C0400NSLPB1
20 220-240 400 36-55 85% CE CB TUV CCC
0.9
PEBH020C0450NSLPB1
20 220-240 450 32-48 85% CE CB TUV CCC
0.9
PEBH020C0500NSLPB1
20 220-240 500 29-43 85% CE CB TUV CCC
0.9
PEBH020C0550NSLPB1
20 220-240 550 26-39 85% CE CB TUV CCC
0.9
PEBH020C0600NSLPB1
20 220-240 600 24-36 85% CE CB TUV CCC
0.9
PEBH020C0650NSLPB1
20 220-240 650 20-31 85% CE CB TUV CCC
0.9
PEBH020C0700NSLPB1
20 220-240 700 20-31 85% CE CB TUV CCC
0.9
PEBH025-B1
25 220-240 400-600 27-65 86% CE CB TUV CCC
0.95
-
PEBH025C0400NSLPB1
25 220-240 400 40-65 86% CE CB TUV CCC
0.95
PEBH025C0450NSLPB1
25 220-240 450 40-65 86% CE CB TUV CCC
0.95
PEBH025C0500NSLPB1
25 220-240 500 30-50 86% CE CB TUV CCC
0.95
PEBH025C0550NSLPB1
25 220-240 550 30-50 86% CE CB TUV CCC
0.95
PEBH025C0600NSLPB1
25 220-240 600 27-42 86% CE CB TUV CCC
0.95
PEBH030-B1
30 220-240 300-740 27-95 87% CE CB TUV CCC
0.95
-
PEBH030C0300NSLPB1
30 220-240 300 70-95 87% CE CB TUV CCC
0.95
PEBH030C0350NSLPB1
30 220-240 350 50-76 87% CE CB TUV CCC
0.95
PEBH030C0400NSLPB1
30 220-240 400 50-76 87% CE CB TUV CCC
0.95
PEBH030C0500NSLPB1
30 220-240 500 40-55 87% CE CB TUV CCC
0.95
PEBH030C0550NSLPB1
30 220-240 550 40-55 87% CE CB TUV CCC
0.95
PEBH030C0600NSLPB1
30 220-240 600 27-42 87% CE CB TUV CCC
0.95
PEBH030C0650NSLPB1
30 220-240 650 27-42 87% CE CB TUV CCC
0.95
PEBH030C0700NSLPB1
30 220-240 700 27-42 87% CE CB TUV CCC
0.95
PEBH030C0730NSLPB1
30 220-240 730 27-42 87% CE CB TUV CCC
0.95
PEBH030C0740NSLPB1
30 220-240 740 27-42 87% CE CB TUV CCC
0.95
PEBH035-B1
35 220-240 350-800 27-95 88% CE CB TUV CCC
0.95
-
PEBH035C0350NSLPB1
35 220-240 350 70-95 88% CE CB TUV CCC - 0.95
PEBH035C0450NSLPB1
35 220-240 450 50-76 88% CE CB TUV CCC - 0.95
PEBH035C0600NSLPB1
35 220-240 600 40-55 88% CE CB TUV CCC - 0.95
PEBH035C0750NSLPB1
35 220-240 750 27-42 88% CE CB TUV CCC - 0.95
PEBH035C0760NSLPB1
35 220-240 760 27-42 88% CE CB TUV CCC - 0.95
PEBH035C0800NSLPB1
35 220-240 800 27-42 88% CE CB TUV CCC - 0.95
PEBH040-B1
40 220-240 400-950 27-95 88% CE CB TUV CCC
0.95
-
PEBH040C0400NSLPB1
40 220-240 400 70-95 88% CE TUV CCC - 0.95
PEBH040C0500NSLPB1
40 220-240 500 50-76 88% CE CB TUV CCC - 0.95
PEBH040C0650NSLPB1
40 220-240 650 40-55 88% CE CB TUV CCC - 0.95
PEBH040C0700NSLPB1
40 220-240 700 40-55 88% CE CB TUV CCC - 0.95
PEBH040C0850NSLPB1
40 220-240 850 27-42 88% CE CB TUV CCC - 0.95
PEBH040C0900NSLPB1
40 220-240 900 27-42 88% CE CB TUV CCC - 0.95
PEBH040C0920NSLPB1
40 220-240 920 27-42 88% CE CB TUV CCC - 0.95
PEBH040C0930NSLPB1
40 220-240 930 27-42 88% CE CB TUV CCC - 0.95
PEBH040C0940NSLPB1
40 220-240 940 27-42 88% CE CB TUV CCC - 0.95
PEBH040C0950NSLPB1
40 220-240 950 27-42 88% CE CB TUV CCC - 0.95
PEBH045-B1
45 220-240 450-1050 27-95 88% CE CB TUV CCC
0.95
-
PEBH045C0450NSLPB1
45 220-240 450 70-95 88% CE CB TUV CCC - 0.95
PEBH045C0550NSLPB1
45 220-240 550 50-76 88% CE CB TUV CCC - 0.95
PEBH045C0750NSLPB1
45 220-240 750 40-55 88% CE CB TUV CCC - 0.95
PEBH045C0950NSLPB1
45 220-240 950 30-45 88% CE CB TUV CCC - 0.95
PEBH045C0960NSLPB1
45 220-240 960 30-45 88% CE CB TUV CCC - 0.95
PEBH045C1000NSLPB1
45 220-240 1000 27-40 88% CE CB TUV CCC - 0.95
PEBH045C1050NSLPB1
45 220-240 1050 27-40 88% CE CB TUV CCC - 0.95

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
