DIP:1-10W
Click to expand the criteria search box
DIP:1-10W Filter Models: 5 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Efficiency | Certificate | Isolation voltage（V） | Spec. | Sample Application |
| ASQ03 | 3 | 85-265 | - | 3.3-24 | - | UL CB CE FCC | 2000 | - | |
| ASQ03020 | 3 | 85-265 | 830 | 3.3 | 63.0% | UL CB CE FCC | 2000 | ||
| ASQ03021 | 3 | 85-265 | 600 | 5 | 65.0% | UL CB CE FCC | 2000 | ||
| ASQ03022 | 3 | 85-265 | 330 | 9 | 70.0% | UL CB CE FCC | 2000 | ||

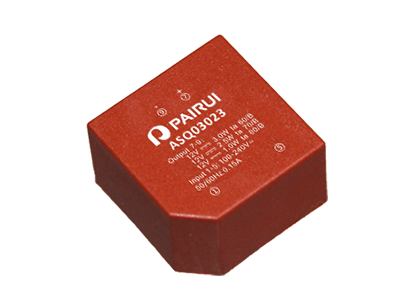

| ASQ03023 | 3 | 85-265 | 250 | 12 | 72.0% | UL CB CE FCC | 2000 | ||
| ASQ03024 | 3 | 85-265 | 200 | 15 | 72.0% | UL CB CE FCC | 2000 | ||
| ASQ03025 | 3 | 85-265 | 170 | 18 | 72.0% | UL CB CE FCC | 2000 | ||
| ASQ03026 | 3 | 85-265 | 125 | 24 | 74.0% | UL CB CE FCC | 2000 | ||
| ASQ05 | 5 | 85-265 | - | 3.3-24 | - | UL CB CE FCC | 2000 | - | |
| ASQ05020 | 4.5 | 85-265 | 750 | 3.3 | 65.0% | UL CB CE FCC | 2000 | ||
| ASQ05021 | 5 | 85-265 | 500 | 5 | 68.0% | UL CB CE FCC | 2000 | ||
| ASQ05022 | 5 | 85-265 | 280 | 9 | 73.0% | UL CB CE FCC | 2000 | ||

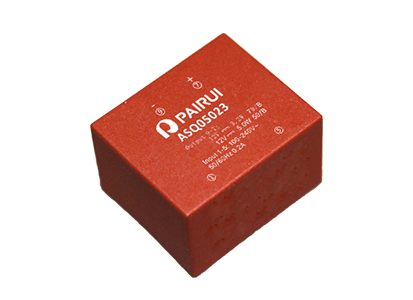

| ASQ05023 | 5 | 85-265 | 210 | 12 | 75.0% | UL CB CE FCC | 2000 | ||
| ASQ05024 | 5 | 85-265 | 170 | 15 | 75.0% | UL CB CE FCC | 2000 | ||
| ASQ05025 | 5 | 85-265 | 140 | 18 | 78.0% | UL CB CE FCC | 2000 | ||
| ASQ05026 | 5 | 85-265 | 105 | 24 | 80.0% | UL CB CE FCC | 2000 | ||
| ASQ05027 | 4.5 | 85-265 | 1180 | 3.8 | 66.0% | UL CB CE FCC | 2000 | ||
| ASP07 | 7.5 | 85-265 | - | 3.3-24 | - | UL CB CE FCC | 2000 | - | |
| ASP07020 | 7.5 | 85-265 | 2270 | 3.3 | 74.0% | UL CB CE FCC | 2000 | ||
| ASP07021 | 7.5 | 85-265 | 1500 | 5 | 77.0% | UL CB CE FCC | 2000 | ||
| ASP07022 | 7.5 | 85-265 | 830 | 9 | 80.0% | UL CB CE FCC | 2000 | ||

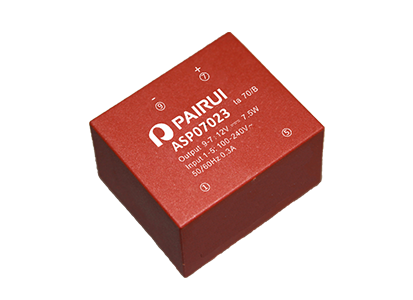

| ASP07023 | 7.5 | 85-265 | 635 | 12 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP07024 | 7.5 | 85-265 | 500 | 15 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP07025 | 7.5 | 85-265 | 420 | 18 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP07026 | 7.5 | 85-265 | 310 | 24 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP10 | 10 | 85-265 | - | 3.3-24 | - | UL CB CE FCC | 2000 | - | |
| ASP10210 | 10 | 85-265 | 3000 | 3.3 | 72.0% | UL CB CE FCC | 2000 | ||
| ASP10211 | 10 | 85-265 | 2000 | 5 | 74.0% | UL CB CE FCC | 2000 | ||
| ASP10212 | 10 | 85-265 | 1100 | 9 | 80.0% | UL CB CE FCC | 2000 | ||

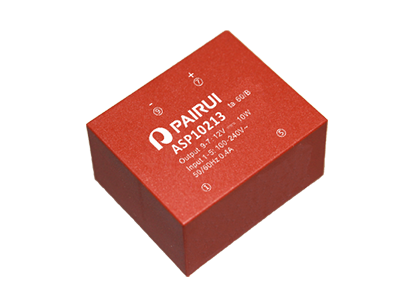

| ASP10213 | 10 | 85-265 | 830 | 12 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP10214 | 10 | 85-265 | 670 | 15 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP10215 | 10 | 85-265 | 560 | 18 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP10216 | 10 | 85-265 | 420 | 24 | 82.0% | UL CB CE FCC | 2000 | ||

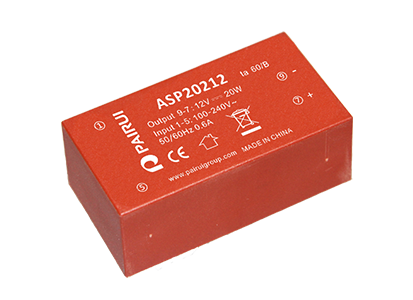

| ASP20 | 20 | 85-265 | - | 3.3-24 | - | UL CB CE FCC | 2000 | - | |
| ASP20220 | 15 | 85-265 | 4500 | 3.3 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP20221 | 20 | 85-265 | 4000 | 5 | 82.0% | UL CB CE FCC | 2000 | ||
| ASP20222 | 20 | 85-265 | 2200 | 9 | 85.0% | UL CB CE FCC | 2000 | ||
| ASP20223 | 20 | 85-265 | 1700 | 12 | 85.0% | UL CB CE FCC | 2000 | ||
| ASP20224 | 20 | 85-265 | 1400 | 15 | 85.0% | UL CB CE FCC | 2000 | ||
| ASP20225 | 20 | 85-265 | 1100 | 18 | 85.0% | UL CB CE FCC | 2000 | ||
| ASP20226 | 20 | 85-265 | 840 | 24 | 85.0% | UL CB CE FCC | 2000 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
